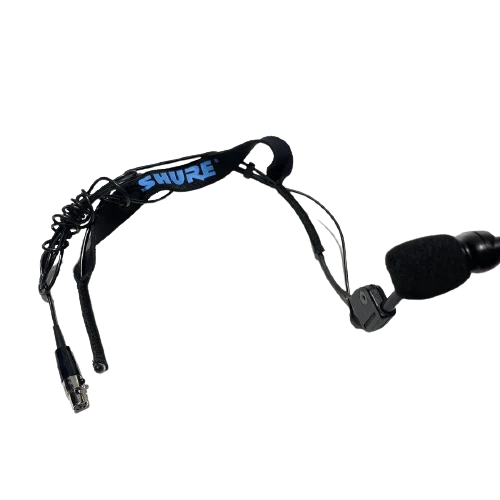

Shure WH30 Cardioid Headworn Condenser Microphone w/ TA4 Connector #2047 - USED

Product ID: DISTRIO-M-2047

The Shure WH30 is a lightweight headset microphone designed to suit the needs of vocalists and musicians. The microphone features an electret-condenser element with a cardioid (unidirectional) pick up pattern. The cardioid pattern effectively minimizes noise and feedback at the off-axis sections of the microphone making it suitable for use near monitor speakers. The headset utilizes, modular, replaceable parts including a comfortable CROAKIES adjustable headband. A sturdy, adjustable gooseneck secures the microphone and a moisture-proof cartridge resists moisture from sweat or the elements. The cable features a mini TA4-female connector for connection to compatible Shure body-pack transmitters.

TA4-Female Connector

The headset features a TA4-female connection allowing complete compatibility with Shure body-pack transmitters.

Unidirectional Microphone

The Cardioid (Unidirectional) polar pattern minimizes noise and feedback at the off-axis sections of the microphone.

Modular Headset

The headset features a CROAKIES adjustable headband and modular, replaceable parts. The microphone boom is adjustable allowing optimum pickup.

In the Box

• Shure WH30TQG Cardioid Headworn Condenser Microphone with TA4 Connector
• Foam Windscreen

Transducer	Condenser, electret bias
Polar Pattern	Unidirectional
Frequency Response	40Hz to 20kHz
Dynamic Range (Typical)	99dB
Signal-to-Noise Ratio	63.0dB @ 94dB SPL (IEC 651)
Maximum Input Sound Level	130dB
Power Requirements	5 VDC (pin 2 to pins 3 and 4)
Output Impedance	(at 1kHz) 2400 ohms
Output Connectors	mini TA4-F
Dimensions	Cable: 10 ft. (3.05 m)
Weight	65 g (2.3 oz)

Packaging Info

Box Dimensions (LxWxH)

7.6 x 6.4 x 3.1"
