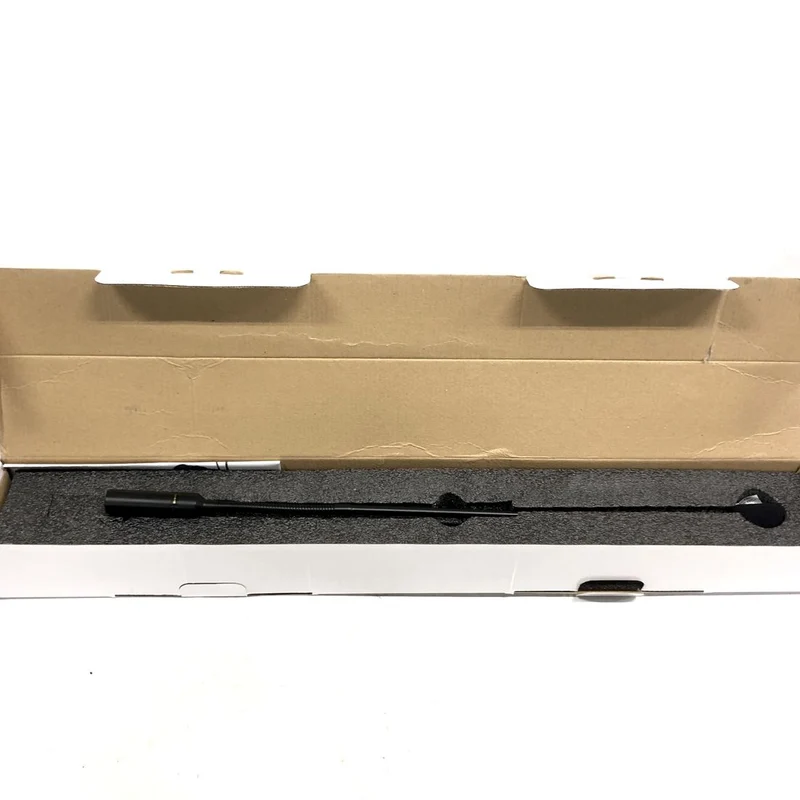

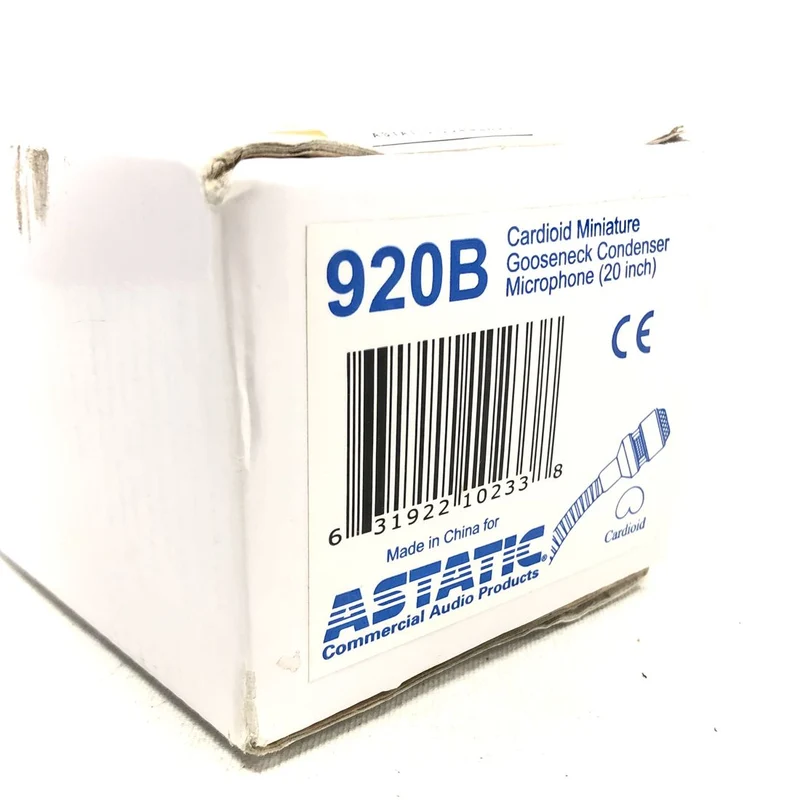

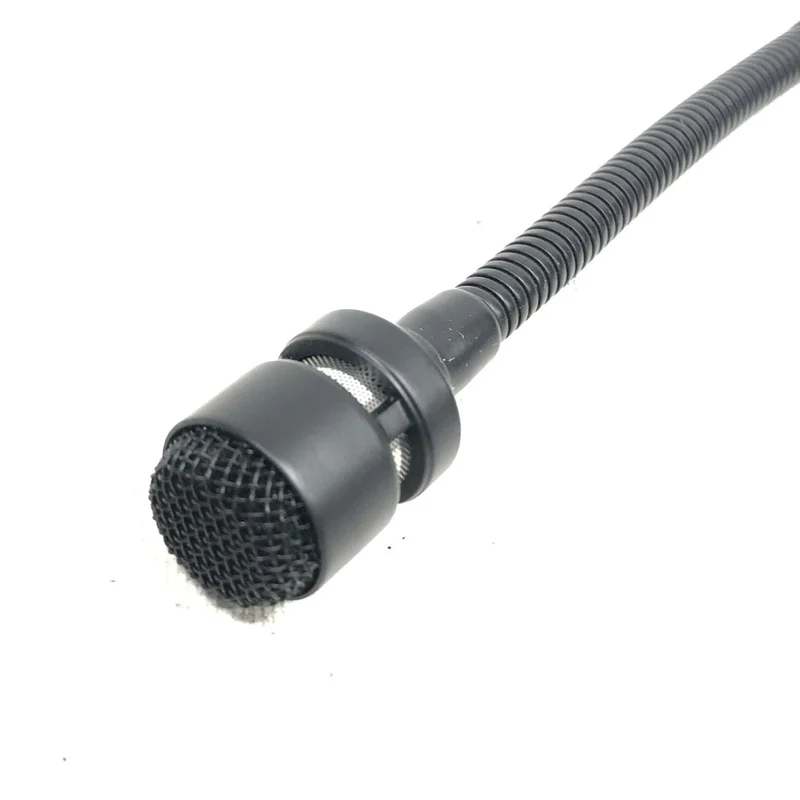

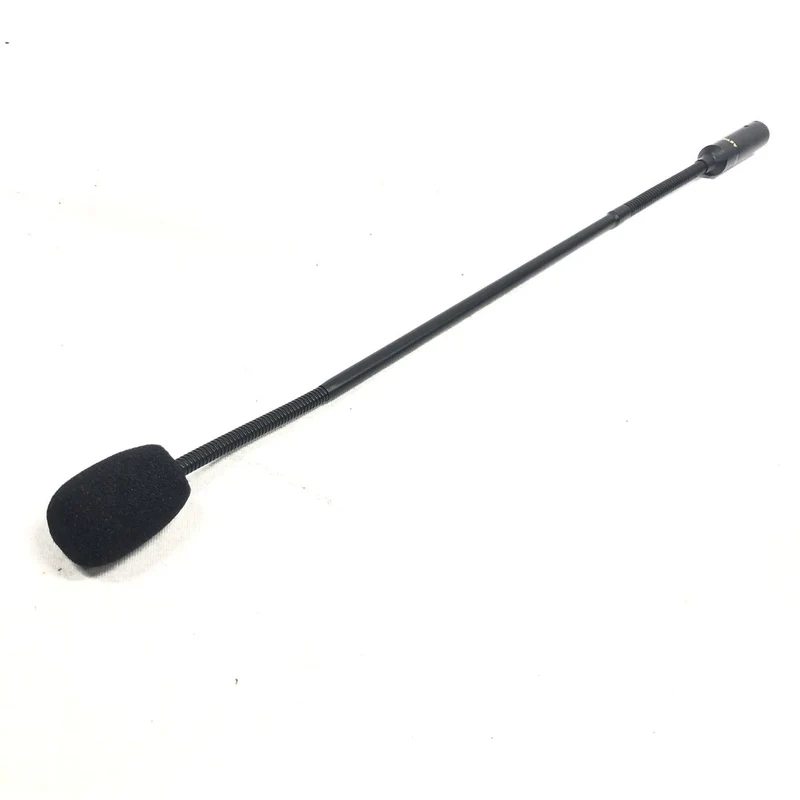

CAD Audio Astatic 920B Miniature Gooseneck Microphone 20" - DEMO

920B Miniature Gooseneck Microphone from CAD is a condenser microphone with a cardioid polar pattern. The cardioid pattern minimizes feedback when close to monitors and reduces pickup of off-axis noise. It features a 519mm neck, with a 6mm flexible gooseneck at the top and an 8mm flexible gooseneck at the bottom. The 920B can be used for stationary miking applications in houses of worship, government, corporate meeting rooms and for general public address.

• Matte-black urethane finish
• P12, P24, or P48 phantom power is required
• Self-contained transformerless electronics allow for simple installation
• Silent operation goosenecks

Capsule	Condenser
Polar Pattern	Cardioid

Performance

Frequency Range	150 Hz to 20 kHz
Maximum SPL	132 dB SPL (1% THD)
Impedance	440 Ohms
Equivalent Noise Level	26 dB A-Weighted

Connectivity

Output Connectors (Analog)

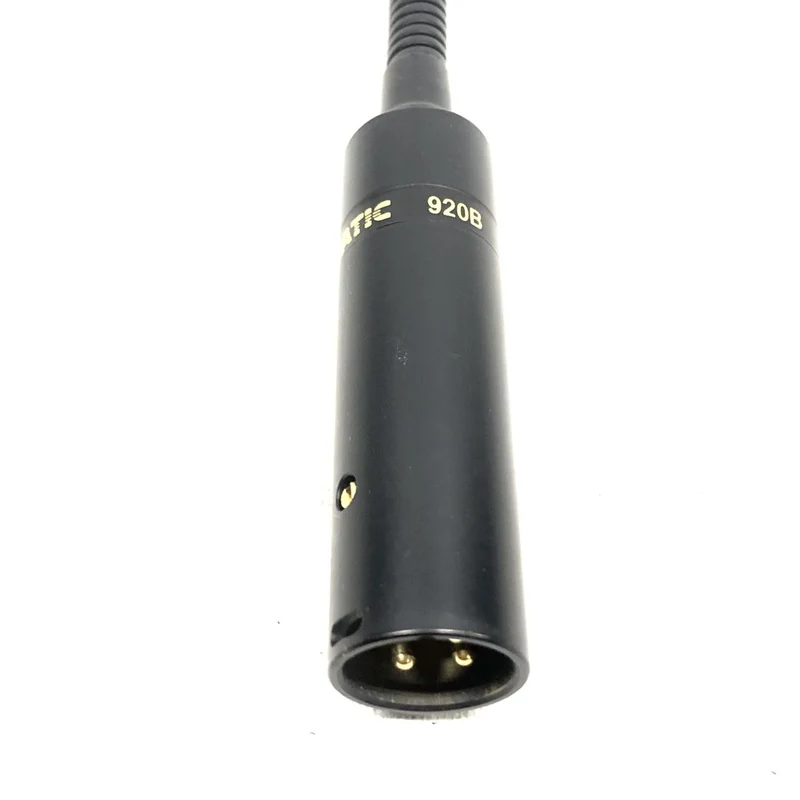

1 x XLR 3-Pin

Power

Operating Voltage	12 to 48 V
Operating Current Consumption	5 mA

Physical

Dimensions	L: 20.44" / L: 519.18 mm (Gooseneck)
Weight	5 oz / 142 g

Packaging Info

Package Weight	0.85 lb
Box Dimensions (LxWxH)	26 x 3.4 x 2.9"
