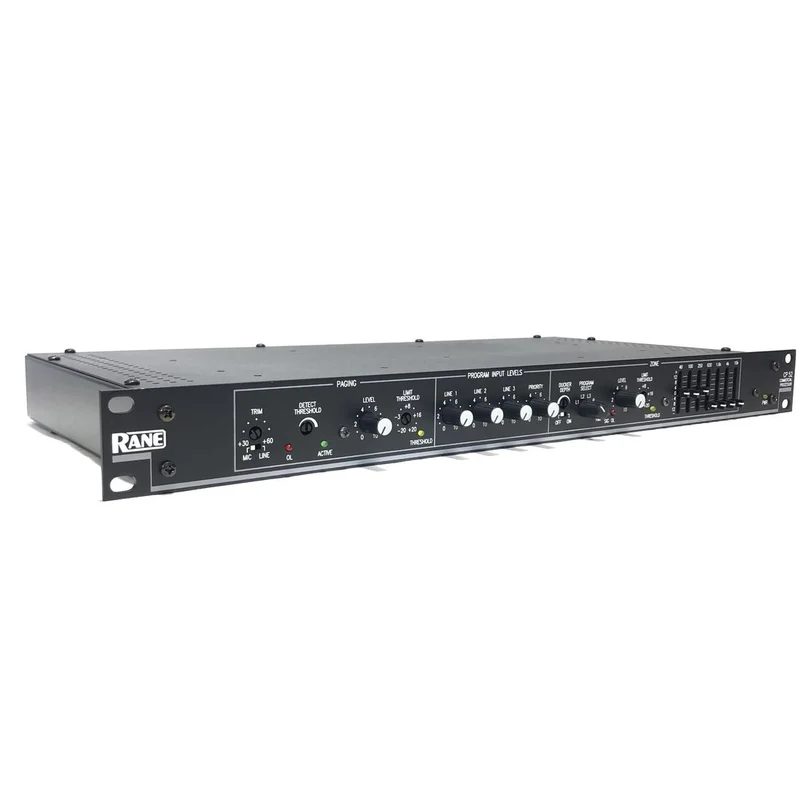

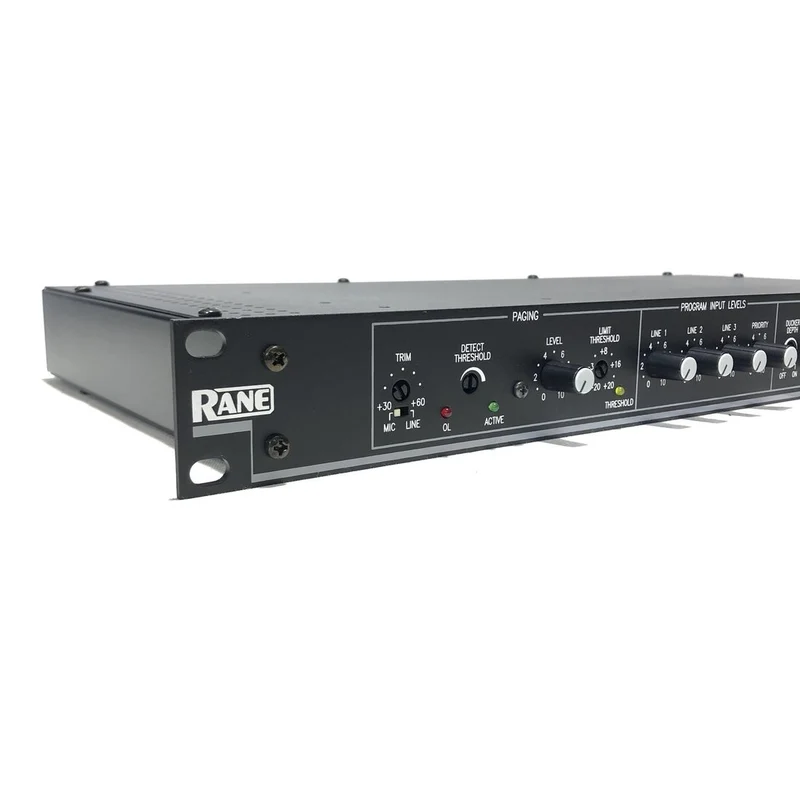

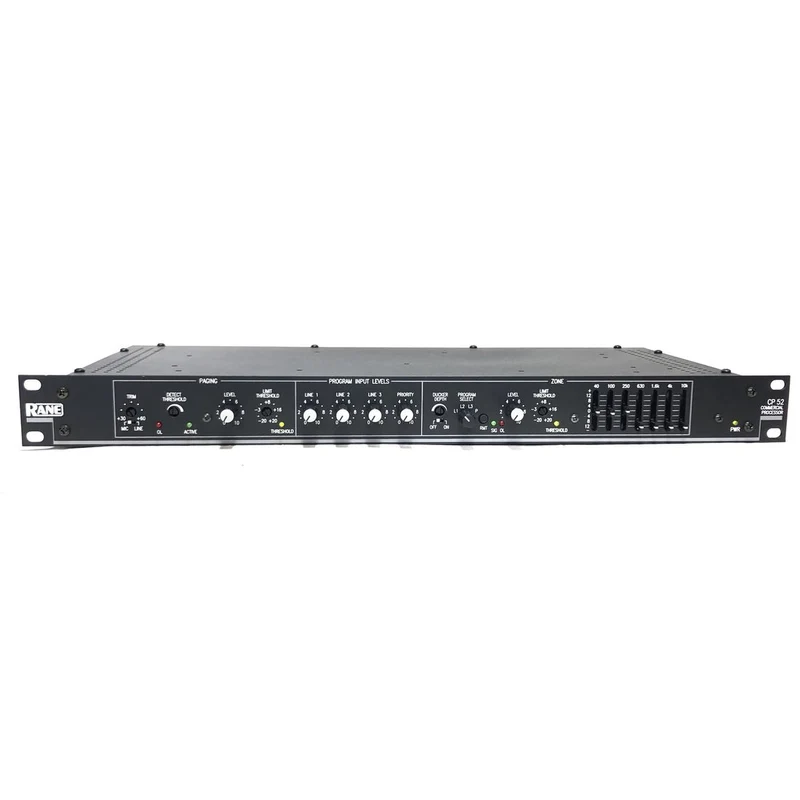

Rane CP52 Commercial Preamplifier and Paging Unit

Rane CP52 is a single zone, commercial audio preamplifier and paging unit for offices, bars, restaurants, fitness facilities, etc. The CP52 features four stereo line inputs for AM/FM receivers, CD players and more. A single input is featured for connecting a paging microphone. Three levels of priority are provided; Page, Program Priority and Non-Priority Program modes are user selectable. A ducking feature automatically lowers program audio while the paging microphone is active and the ducker level is user adjustable. The CP52 is easy to use and install, making it a viable solution for any small, commercial establishment.

Four Inputs

The CP52 features four line level inputs for AM/FM receivers, CD players, etc.

Paging Microphone Input

A paging microphone may be connected for making announcements.

Three Priority Modes

Three levels of priority are provided; Page, Program Priority and Non-Priority Program modes are user selectable.

Paging Microphone Ducker Adjustment

A ducking feature automatically lowers program audio while the paging microphone is active and the ducker level is user adjustable.

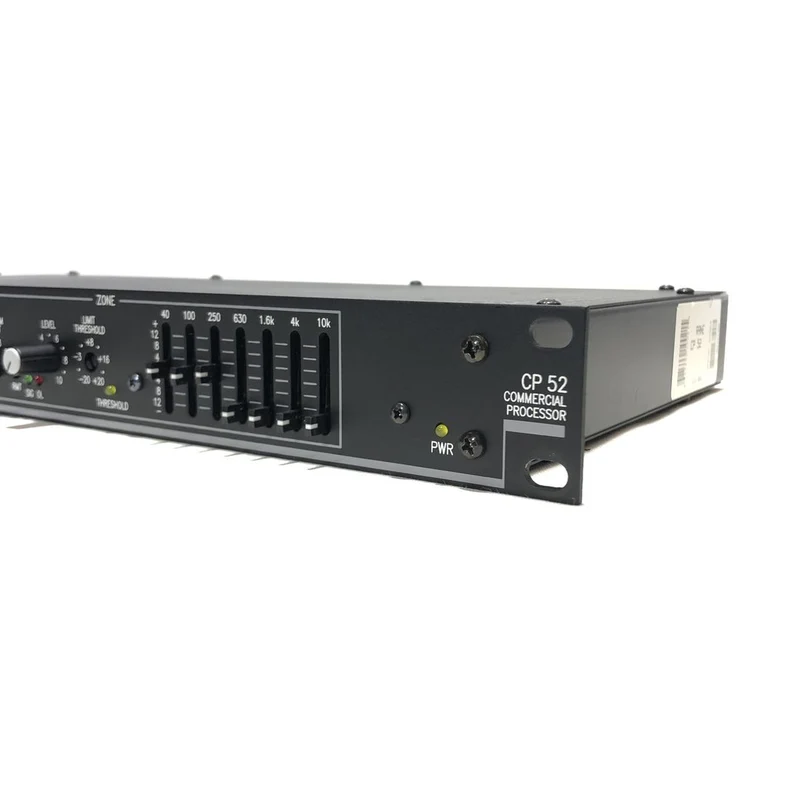

Graphic EQ

A seven band graphic EQ provides final frequency contouring of the entire output signal.

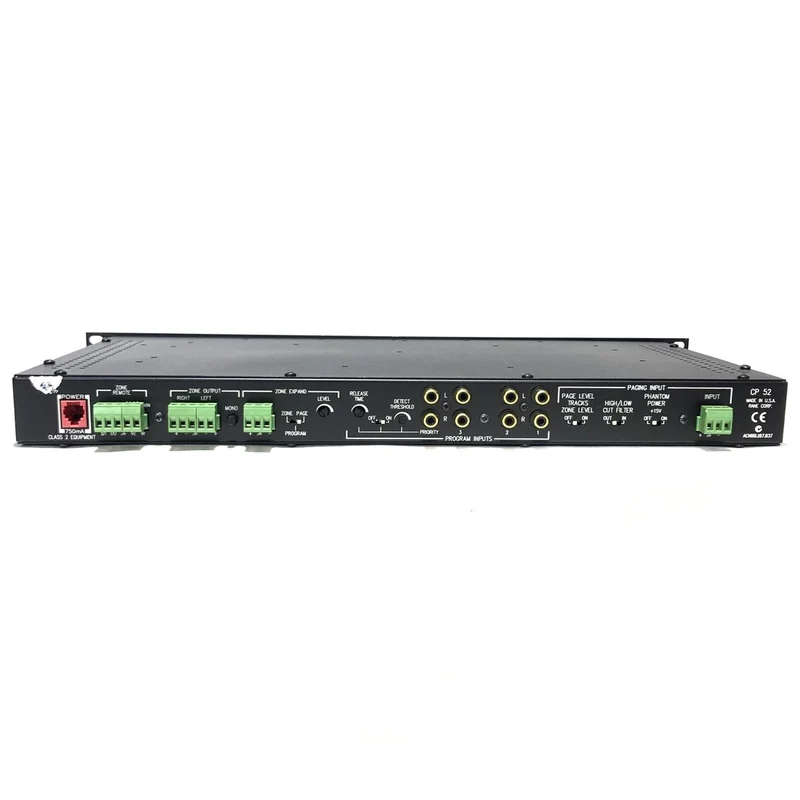

Inputs	Stereo RCA Line x4 Euroblock Paging Microphone
Outputs	Euroblock Stereo Zone Euroblock Expand Output Euroblock Zone Remote
Output Power	Not Applicable
Output Impedance	Zone Out: 100 ohm
Frequency Response	10Hz to 40kHz
THD & Noise	CD Section: Less than 0.2% Cassette Section: Less than 0.2%
Signal to Noise Ratio	84min dBr
EQ Section	7-Band Graphic
Power	120VAC model, 18VAC Max Current: 750
Dimensions	1.75 x 19 x 8.5" (4.4 x 48.3 x 21.6cm)
Weight	9 lbs (4.1 kg)
