Hercules DeeJay TRIM 4&6 - USB 4-Channel DJ Audio Interface

Hercules DeeJay TRIM 4&6 USB Interface bridges your traditional DJ setup with a Mac or PC desktop or laptop computer. The interface features 4-channel inputs and outputs, headphone and microphone inputs, a USB output, and level controls for each channel. Effortlessly mix WAV and MP3 files within the software, or using a traditional turntable / CD deck and mixer setup (software included). Cue, scratch and adjust pitch of up to 4-channels of audio files just like vinyl.

Nightclub, mobile and bedroom laptop DJs will find this package a well suited solution for creating custom mixes with audio files.

2 Audio Modes

4-In / 4-Out 2-iIn / 6-Out (to export mixes to an external mixer)

Ready for Professional Gear

Outputs: two +4dBu 1/4" jacks for PA amplifiers (and six -10 dBv RCA plugs for mixers) Inputs: preamplifiers for both low-level sources (Phono turntables) and high-level sources (e.g. Pioneer CDJ )

Built-in High-Speed USB Hub

Connect your DJ controller Power adapter included: no USB bus power fluctuations risk altering the sound Multi-TT USB 2.0 hub: high performance on all ports

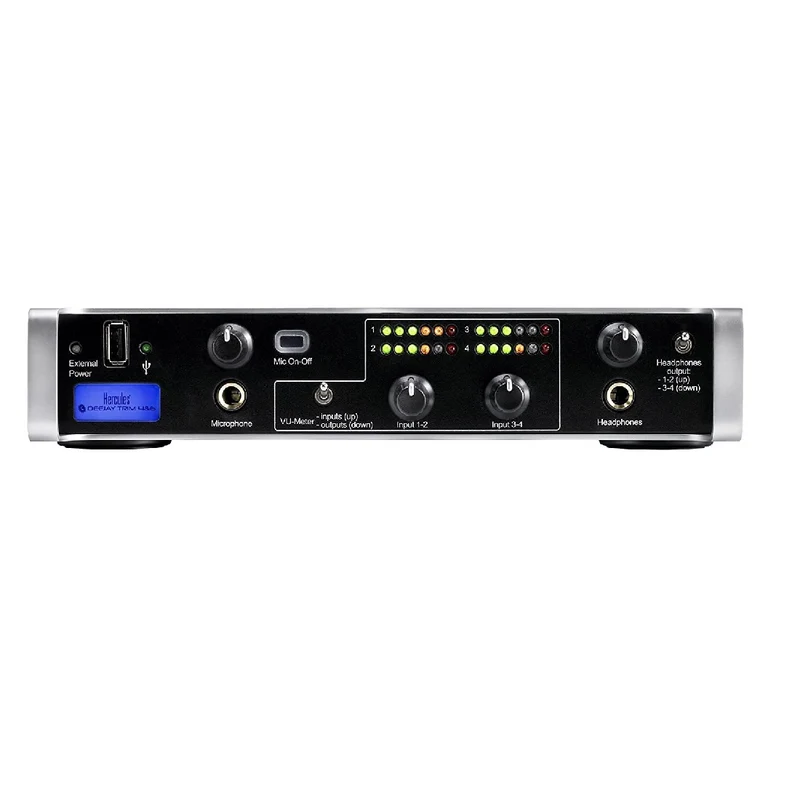

View-Meters

Monitor inputs & outputs 6 LEDs per channel: view the status of each channel

Drivers

Windows XP/Vista (32-bit & 64-bit) / WDM & ASIO Mac OS 10.4 & 10.5

User-Friendly

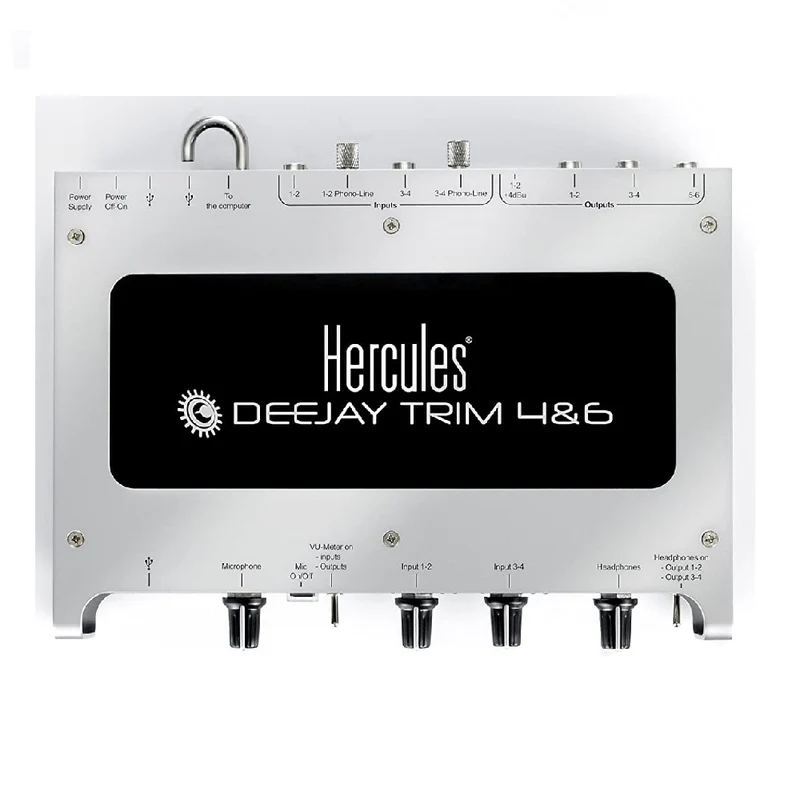

Solid metal casing View-meters on front: you can see levels both while sitting and standing up Plugs located on rear panel (except headphones, microphone and 1 USB port): your interface won't look like a spider once all ports are connected

4-Channel Output

For internal mixing: play the mix on outputs 1-2 / preview on outputs 3-4 For external mixing: assign outputs 1-2 to left deck, outputs 3-4 to right deck and mix on an external mixer

4-channel input (Line & Phono level)

Line level: connect external MP3 / CD players and mix them with computer tracks Phono level: connect vinyl turntables and mix them with computer audio files

Headphones Output for Monitoring

Stereo 1/4" jack output for connecting headphones, featuring a volume button Set the monitored channels: outputs 3-4 for preview / outputs 1-2 for the mix

Microphone Input with Talk-over Function

Mono 1/4" jack input for connecting a microphone Talk-over mode (mix the microphone input with background music)

Preamplifiers on 4-channel inputs

2 stereo preamplifiers to adjust the volume of the 4-channel analogue inputs: 2 buttons and 4 view-meters to set the volume of analogue inputs Supports high-level sources (e.g. Pioneer CD players) and phono turntables

USB 2 High-Speed Hub with Power Adapter

3-port high-speed USB hub to plug your DJ controller and external storage device Power adapter included

Minimum System Requirements

1.5 GHz or faster CPU 1 GB RAM or more / USB port MS Windows XP / Vista or Mac OS 10.4 / 10.5

Packaging Info

Package Weight	4.9 lb
Box Dimensions (LxWxH)	11 x 8.6 x 5.5"
