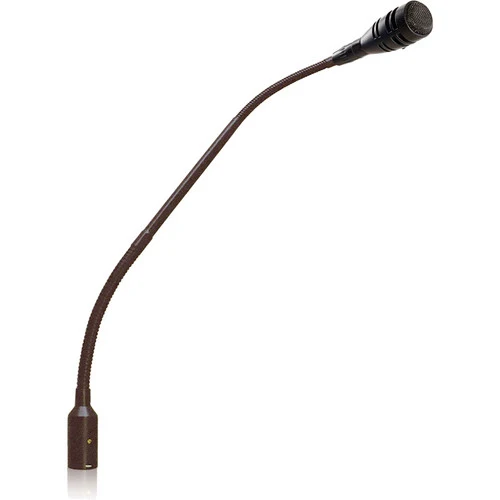

CAD Audio Astatic 1800VP Variable Pattern Podium Microphone - DEMO

The Astatic 1800VP Variable Pattern Podium Microphone features an 18" flexible gooseneck microphone and power supply with continuously variable polar pattern dial. In addition, an 80Hz / 12dB high Pass filter switch minimizes low-frequency noise. Both the microphone and control box are impervious to RFI (Radio Frequency Interference) from cell-phones, PDAs, Blue-Tooth and other devices. The 1800VP delivers transparent speech reproduction in any public-address application.

• Continuously-variable polar pattern controllable from a remote location
• Remote box is rack mountable up to six units per shelf
• Blue LED status indicator on remote box
• Selectable recessed high-pass filter for elimination of unwanted low-frequency energy
• Securable controls with standard flat style blank rack panel, when rack mounted
• RF (radio frequency) Resistant Architecture
• Included 18" gooseneck with XLRM-type quick connector
• Engineered and built in the U.S.A.

Microphone

Capsule	Condenser
Pattern Selection	Continuously Variable
High-Pass Filter	80 Hz, 12 dB/Octave

Performance

Frequency Range	40 Hz to 20 kHz
Maximum SPL	110 dB SPL (1 kHz, 1% THD)
Impedance	135 Ohms
Signal-to-Noise Ratio	22 dB A-Weighted

Connectivity

Output Connectors (Analog)

1 x XLR 3-Pin

Power

Operating Voltage	12 to 48 V
Operating Current Consumption	4 mA

Packaging Info

Package Weight	2.295 lb
Box Dimensions (LxWxH)	17.6 x 10.4 x 4.4"
