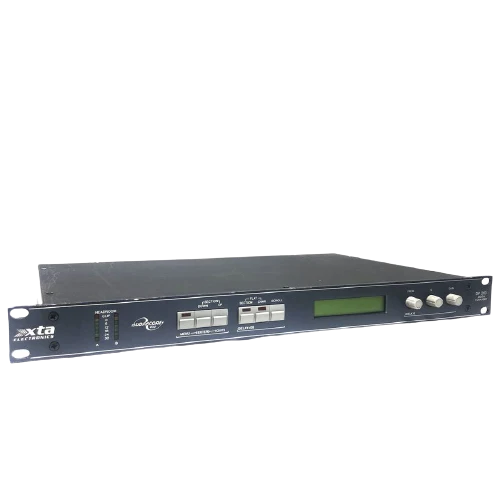

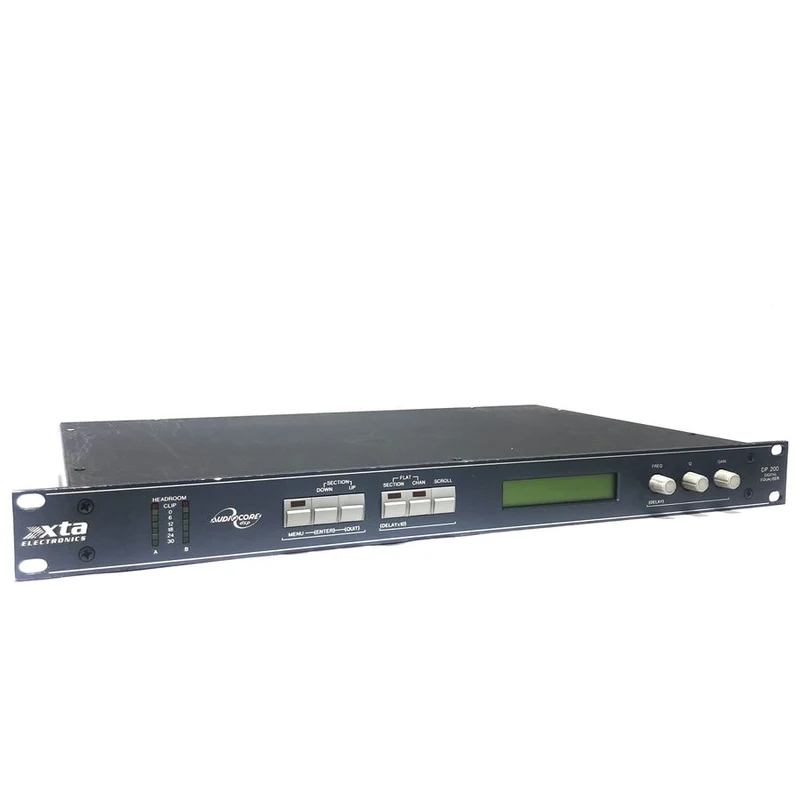

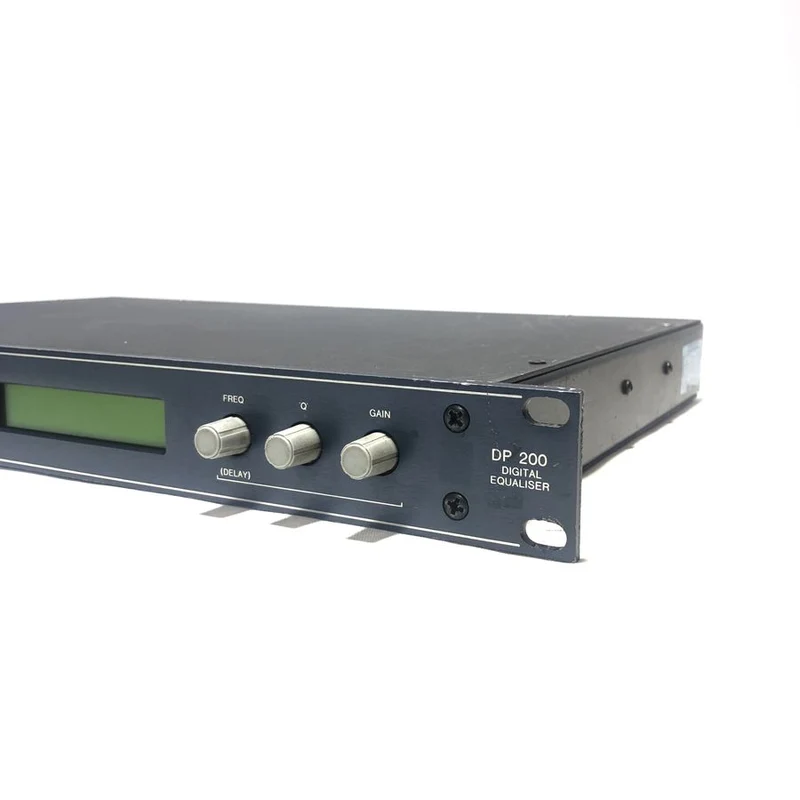

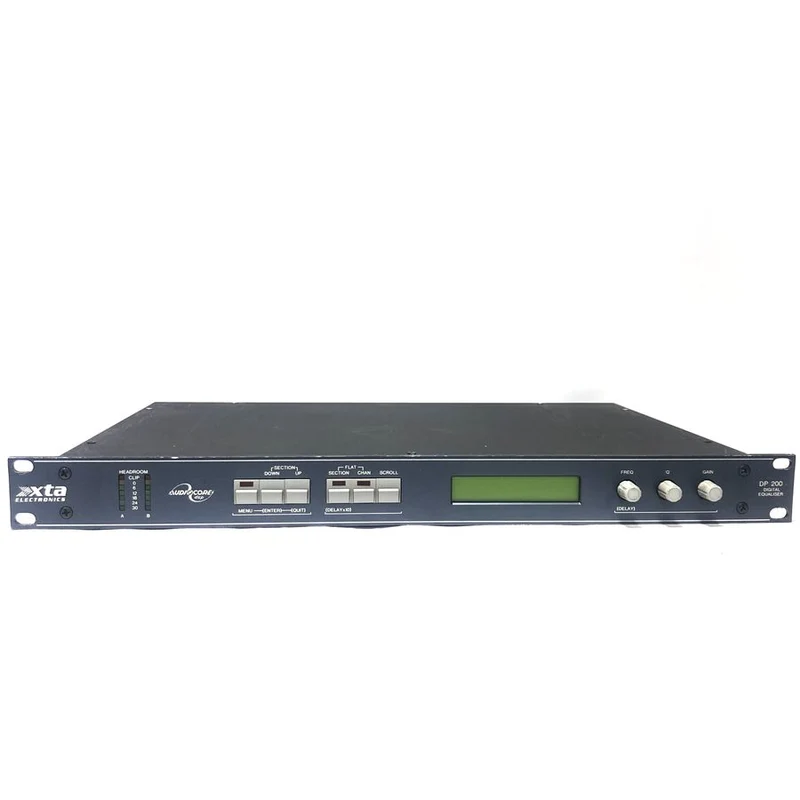

XTA Electronics DP200 Digital Crossover / Equalizer #2295 - USED

The DP200 is a compact and powerful DSP based audio processing unit, ideally suited for fixed installations, where it combines the functions of multiple conventional products in a compact 1U high unit. To achieve this the DP200 provides:- 2 input 4 output format, 10 configurations including 4 crossover modes, 4x 8 bands of parametric equalization, up to 682mS delay, variable High and Lowpass filters, 4 output limiters and digital level controls for each output. Each parametric section can be positioned between 20Hz & 20kHz, features a wide range of Q's and has 15dB to -30dB gain available, controllable in 0.1dB steps. The first two sections can also be designated a Low or High frequency shelving filter. MIDI control and user memories are provided, and also a multi-level security 'lock-out' function for all controls.

XTA DP200 Specifications
Inputs		Two electronically balanced. ‹
Impedance	> 10k ohms.
CMRR	>65dB 50Hz - 10kHz.
Outputs		Four electronically balanced. ‹
Source Imp	< 60ohms.
Min. Load	600ohm.
Max. Level		+20dBm into 600 ohm load.
Frequency Resp.	±0.5dB 20Hz - 20kHz.
Dynamic Range		>103dB 20Hz -20kHz. unwtd.
Distortion		< 0.02% @ 1kHz, +18dBm.
Maximum Delay		682 mS. (increment 21 µS)
Output gain		Adjustable +15dB to -40dB in 0.1dB steps and mute.
Input gain	Adjustable	0dB to -40dB in 0.1dB steps. (crossover
	modes only)
Parametric Equalisation
Filters		8 Sections per output ( 16 in Dual mode).
Filter gain		+15dB to -30dB in 0.1dB steps.
Centre frequency		20Hz - 20kHz, 1/24 octave steps. (240 positions)
Filter Q	0.4 to 128
	(Sections 1 & 2 switchable to Shelving response)
Low frequency	20Hz - 1kHz
High frequency	1kHz - 20kHz
Shelf gains	±15dB in 0.1dB steps.
High and Lowpass Filters
Filters	1 of each per output.
Frequency (HPF)		10Hz - 16kHz, 1/24 octave steps.
Frequency (LPF)		60Hz - 22kHz, 1/24 octave steps.
Response	Bessel	/ Butterworth
		Linkwitz-Riley 24dB per octave.
Limiters
Threshold		+20dBu to -27dBu (dependant on operating level).
Attack time	1 to 99 milliseconds.
Release time		4, 8 or 16 times the attack time.(Slow, Medium, Fast)
Operating level		Headroom selectable +3dB, +8dB, +15dB & +20dB.
Display		2 x 20 character backlit LCD.

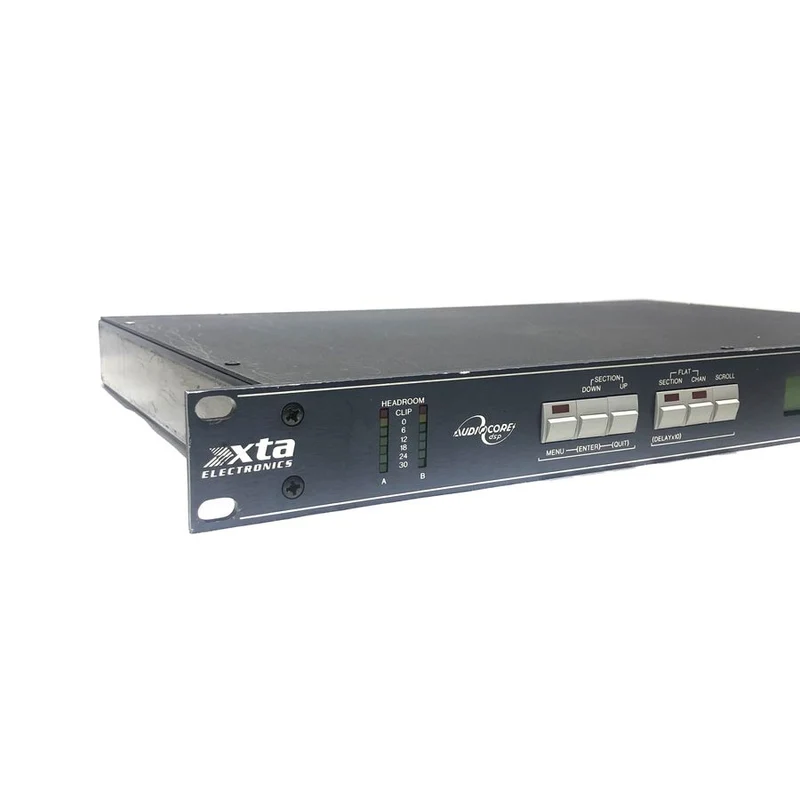

Headroom meter	2 x 7 point, -30dB to clip.

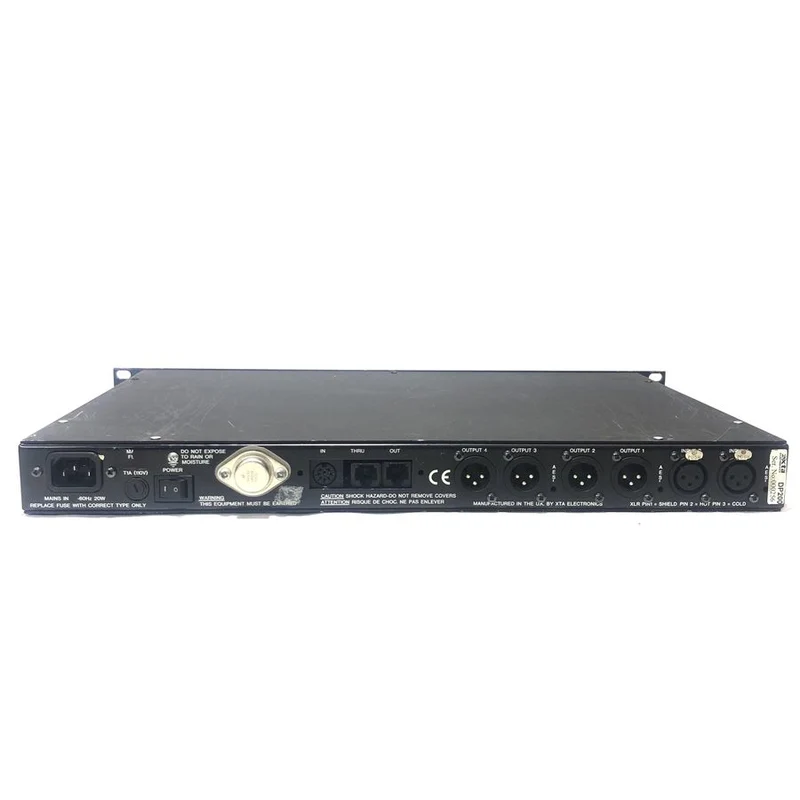

Connectors
Inputs	3 pin female XLR.
Outputs	3 pin male XLR.
MIDI	In / Out / Thru 5 pin DIN.
Power	3 pin IEC.
Power		110 / 220 V ±15% @ 50/60Hz.
Consumption	< 20 watts.
Weight		3.5kg. Net (4.8kg. Shipping)
Size		1.75"(1U) * 19" * 11.8" (44 * 482 * 300mm) excluding
	connectors.
Optional Interfaces		RS232 (9 way DEE), RS422 (9 way DEE) and RS485
		(8way RJ45 x 2). These options also provide closed-
		contact memory recall via 8 pin DIN socket.
Options		‹ = Transformers available.
Relay bypass. Digital I/O.
