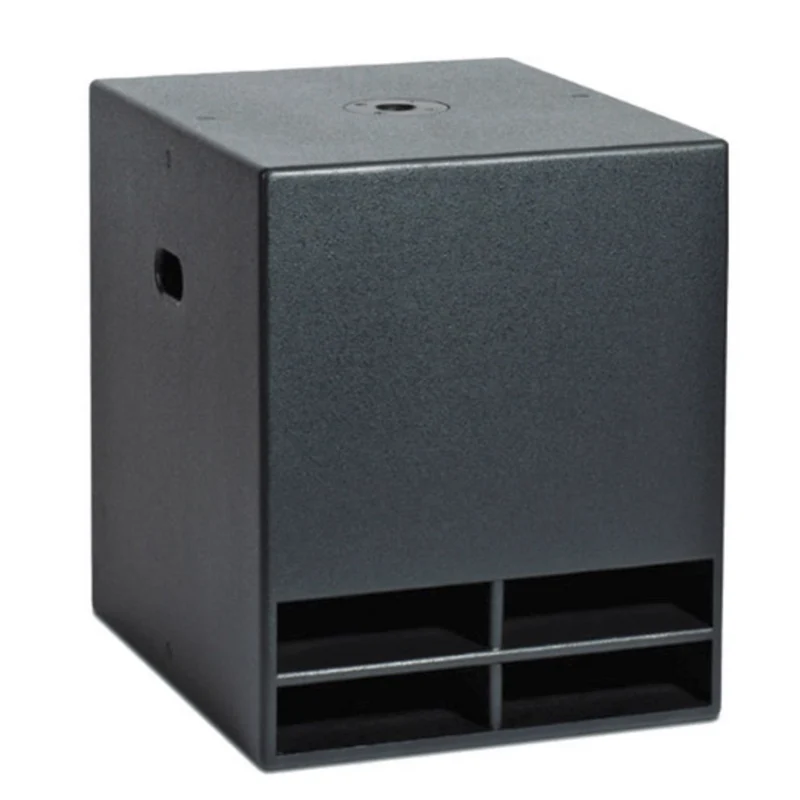

Turbosound TCX-15B Compact Bandpass Passive Subwoofer - DEMO

The black TCX-15B Compact Bandpass Subwoofer from Turbosound is a sub-bass loudspeaker that consists of a 15" low frequency driver in a bandpass-loaded enclosure designed for extended low frequency response. When permanently installed the cabinet presents a discreet appearance, while for portable use the pole mount socket allows TCX series two-way loudspeakers to be mounted on a straight speaker pole above the subwoofer. The cabinet is finished in black textured paint and includes internal threaded rigging points that allow it to be suspended in permanent installations using M10 eyebolts. A rear panel provides two Speakon NL4 connectors wired in parallel with a four-way barrier strip connector. When used with Turbosound Loudspeaker Management Systems (sold separately), TCX loudspeakers can be controlled and monitored over a BVNet network using TurboDrive control software.

Bandpass loading Compact cabinet Pole mount socket Internal rigging points Speakon NL4 and barrier strip connectors For mobile DJs, corporate & industrial applications, houses of worship, theaters, live music venues, and more

Turbosound TCX15B Specs

Components	LF Driver: 1 x 15" (380 mm)
Frequency Response	35 to 125 Hz, ±3 dB 28 to 170 Hz, ±10 dB
Power Handling	Continuous: 1,000 W Program: 2,000 W
Sensitivity	95 dB (1 W @ 1 m)
Maximum SPL	Continuous: 125 dB Peak: 131 dB
Nominal Impedance	8 ohms
Construction	5/8" (15 mm) Birch plywood finished in black semi matte textured paint
Connectors	2 x SpeakON NL4
Rigging Points	8 x M10 internal rigging points for eyebolts
Dimensions	23.6 x 19.7 x 23.6" (600 x 500 x 600 mm)
Weight	78 lb (35.5 kg)
