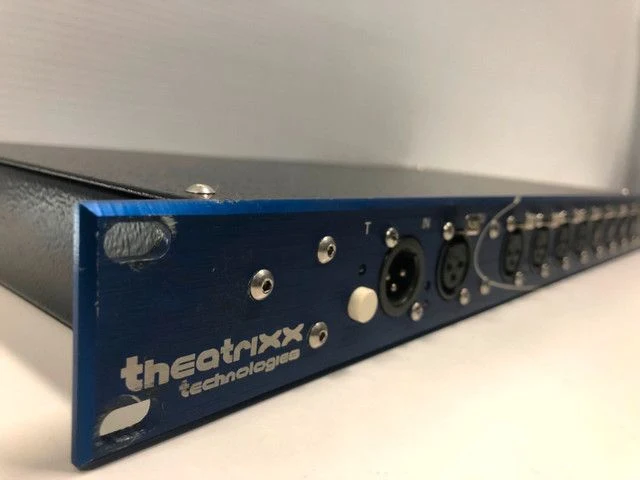

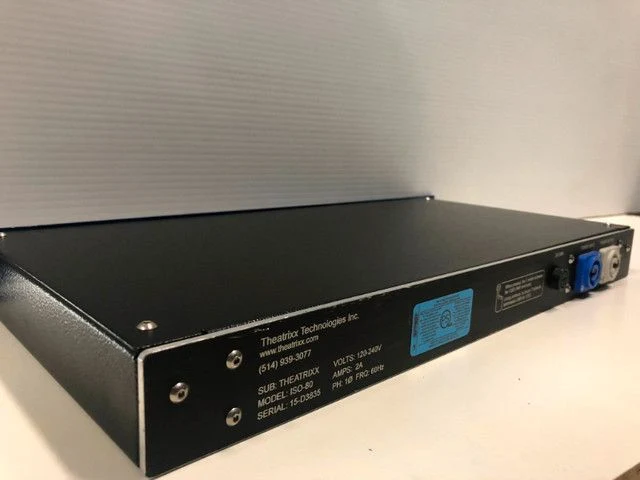

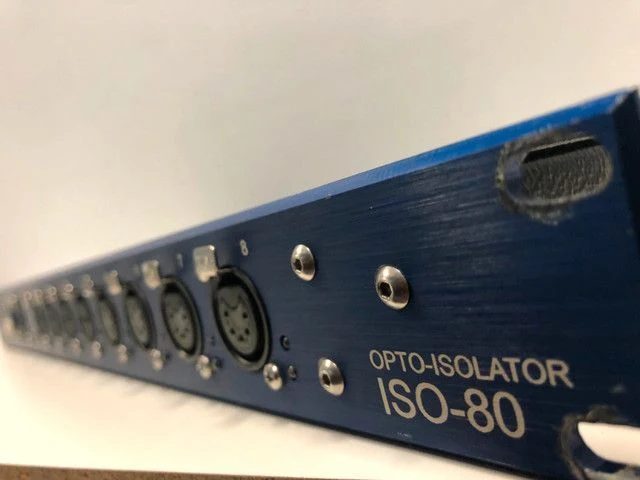

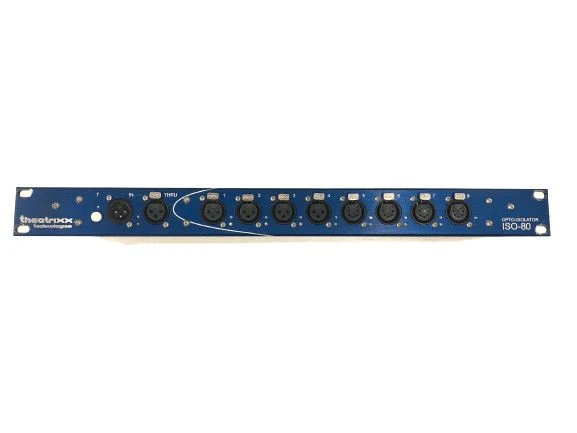

Theatrixx Technologies ISO-80 Opto-Isolator - USED

84,90 €124,26 €31% OFF
Retours sous 30 joursGarantie 1 an
Livraison estimée: 7 octobre - 9 octobre.
84,90 €
Quantité
Moyens de paiement
Détails du produit

The DMX/RDM splitter is a high-quality, rugged distribution device for your DMX-512 and RDM signals. Available in both traditional 1RU, 8 channel form factor, or as a modular, 3-channel unit compatible with Theatrixx’s Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possibilities for the high-universe count, high-density configurations. For maximal compatibility, the device is offered with a choice of 3-pin or 5-pin XLR connectors.

The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network. RDM data is forwarded to each port, and a special “Timing Safe Mode” bypasses RDM transmissing and boosts the DMX signal quality to ensure compatibility with older-generation fixtures. It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button.

Features

Compatible with DMX-512A (RDM) and DMX-512 (1990). Comprehensive protection against severe electrical faults on DMX lines. Switchable DMX Termination on input. Timing-safe mode filters and retimes incoming signal.

Specifications

Inputs/Outputs

Input

3-pin XLR male

Loop-Thru

1 x 3-pin XLR female

Isolated Outputs

8 x 3-pin XLR female

Supported Signals

DMX Termination

Switchable on/off

RDM Support

Yes

RDM Bypass

Switchable on/off

Port Isolation Voltage

Up to 1kV

Timinig Safe Mode

33 FPS, 512 Slots, 88us Break, 44 us MAB

Physical Specifications

Height: 43.43 mm (1.7 in) – 1 RU

Depth: 178 mm (7 in)

Width: 482.6 mm (19 in)

Weight: 3.75 kg (8.25 lbs)

Environnemental Specifications

Relative humidity: 0% to 90% RH non-condensing

Operating temperature: 0-40 °C

Power Requirements

Power Supply: Built-in Power Supply

Power Type: PowerCon with Loop Thru

Power Consumption : 15W

Voltage Range: 100-240V, 50-60Hz

In the Box

  • Theatrixx DMX/RDM splitter/isolator 1:8 + thru. 1RU XLR3
  • AC Mains to PowerCON True1 Cable
  • Extra power cables available on request
