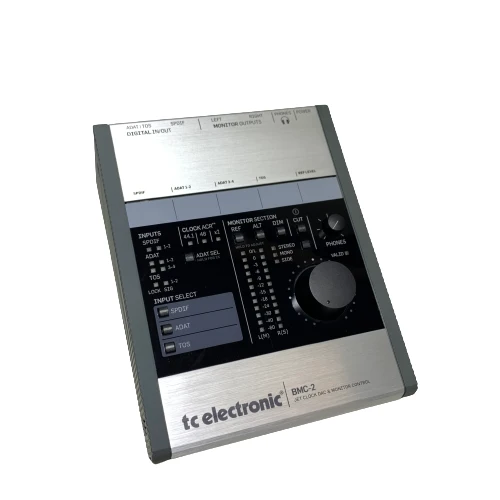

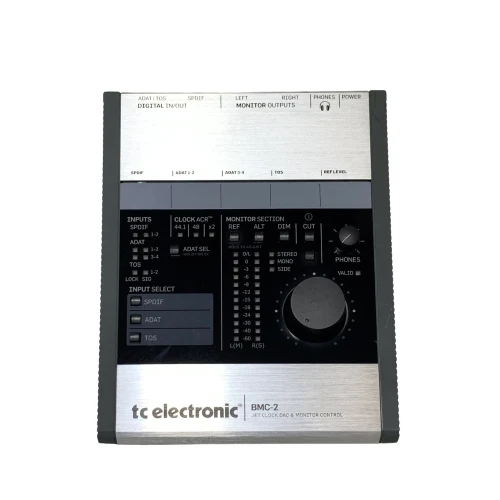

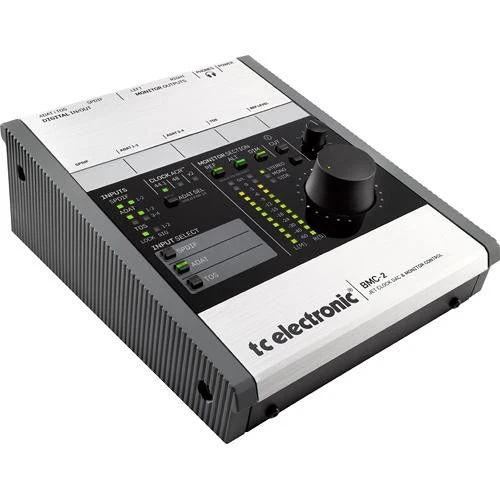

TC Electronic BMC-2 Digital Audio Converter and Monitor Controller

The BMC-2 from tc electronic is a self-contained digital-to-analog audio convert and monitor controller ideal for digital or analog audio production and monitoring. In addition to controlling listening levels, the BMC-2 lets you switch between S/PDIF, AES3, TOS, and ADAT digital input sources, and confirms whether or not the inputs are synchronous.

The unit provides calibrated listening for a set of analog speakers, a set of digital speakers, and a pair of headphones. The BMC-2 also provides user-definable reference levels with a single button. The BMC-2 precisely re-clocks all inputs and has high-performance jitter rejection based on patented JET technology. The analog output has peak level metering and "iCheck" integrity check to reveal if a signal is spatially compromised.

The BMC-2 is completely self-contained. It can interface directly with Macs and PCs, but does not require a computer for setup. It operates on 12VDC power and fits comfortably on any desktop.

• Dedicated digital-to-analog converter and monitor controller
• Switches between S/PDIF, AES3, TOS, and ADAT digital input sources, and confirms whether or not the inputs are synchronous
• Ultra-low latency speaker and headphone control
• Provides calibrated listening for a set of analog speakers, a set of digital speakers, and a pair of headphones
• One-touch user-definable reference levels
• Precisely re-clocks all inputs and has high-performance jitter rejection based on patented JET technology to provide all of the benefits of optical interfacing without the problems
• XLR analog outputs with wide dynamic range, peak level metering, and "iCheck" integrity check to reveal if a signal is spatially compromised
• Interfaces directly with Macs and PCs, with no computer needed for setup

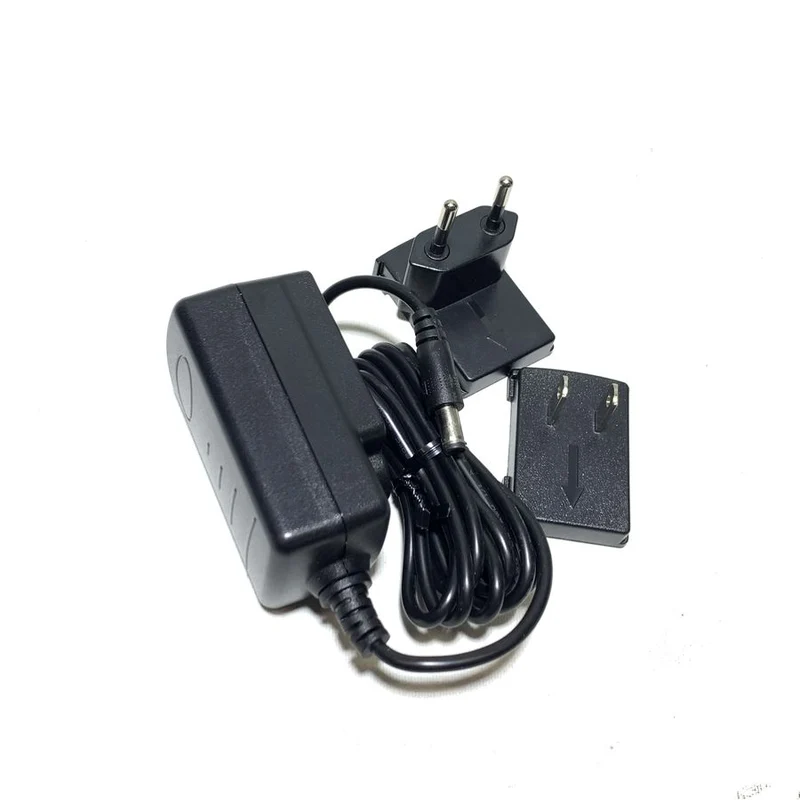

• Operates on 12VDC power

Input Impedance	75 Ohms
Output Impedances	< 100 Ohms
Sensitivity (0 VU)	Not Specified by Manufacturer
Maximum Input Level	Not Specified by Manufacturer
Maximum Output Level	+13dBu, -5dBu DIM Activated
Noise	Not Specified by Manufacturer
THD + N	0.002%
Crosstalk	< -98dB
Input Connectors	1 x RCA Phono S/PDIF Input (AES3-id Compatible, BNC Adapter Included) 1 x ADAT/TOSLink Optical Input

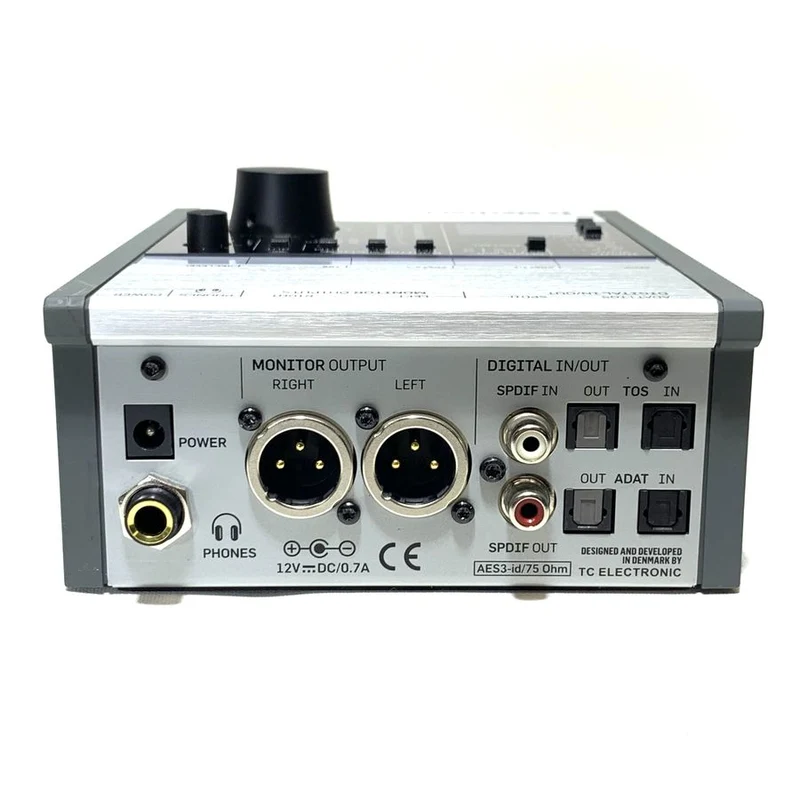

Output Connectors	1 x Digital Speaker Output 1 x Analog Speaker Output 1 x 1/4" Headphone Output
Speaker Switching	Yes
Meters	LED Level Meters
Talkback Mic	No
Talkback Mic Input	No
Headphone Output	Yes, 1/4" Stereo
Dimensions (WxHxD)	5.5 x 2.5 x 6.9" (140 x 64 x 176mm)
Weight	1.8 lbs (0.82kg)

Packaging Info

Box Dimensions (LxWxH)

8.6 x 7.4 x 3.2"
