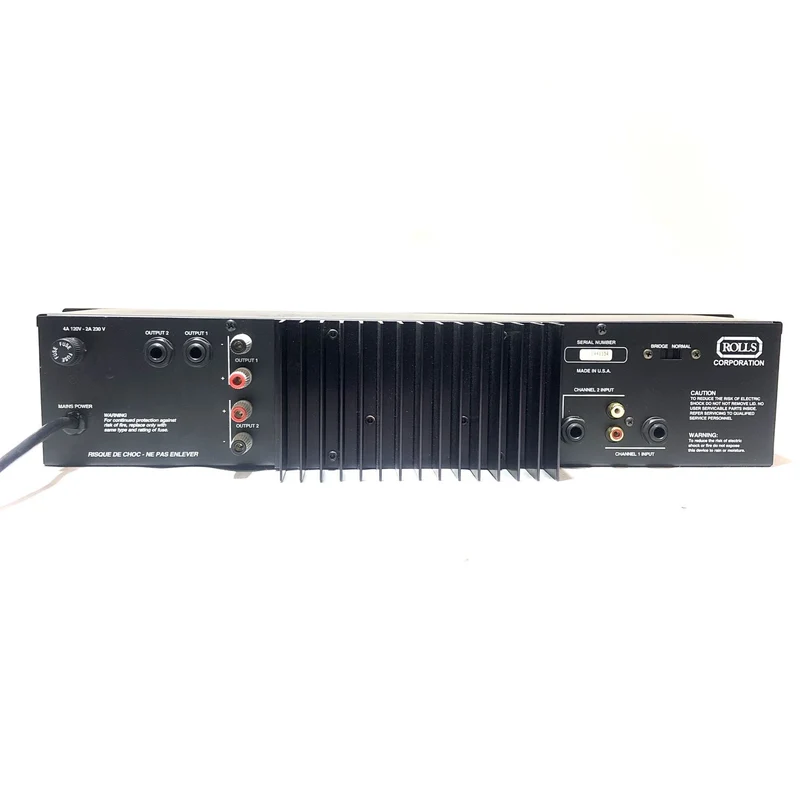

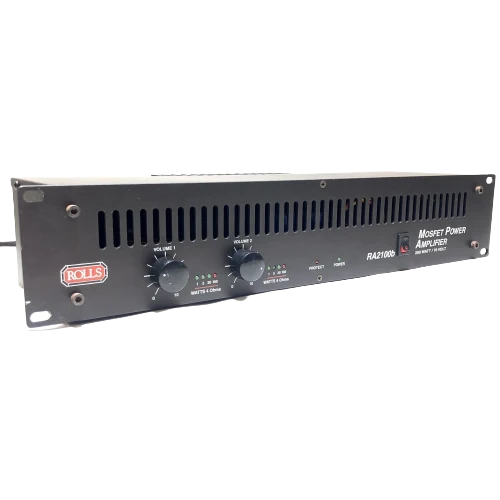

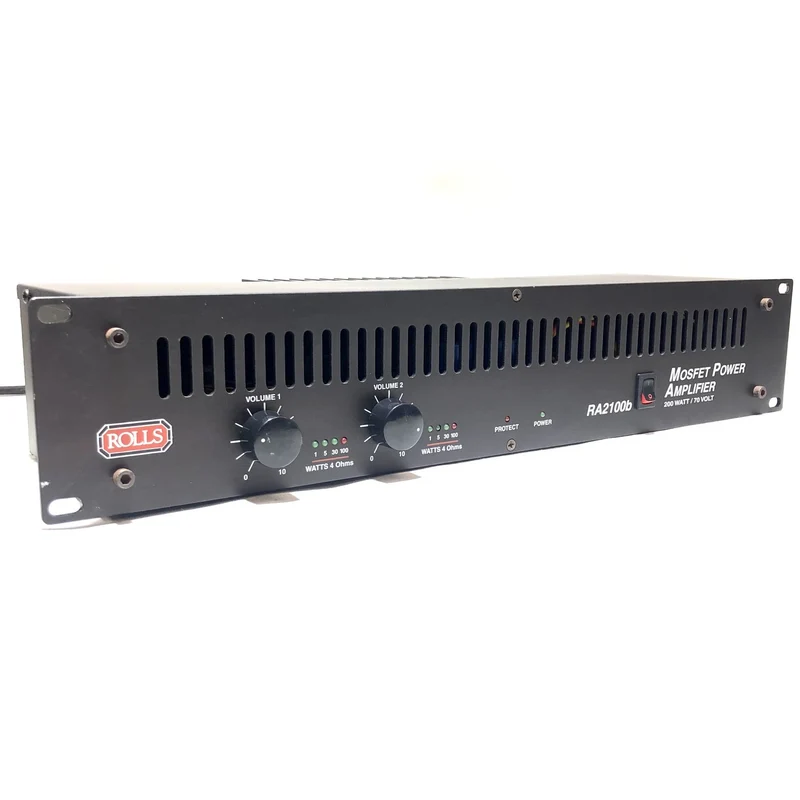

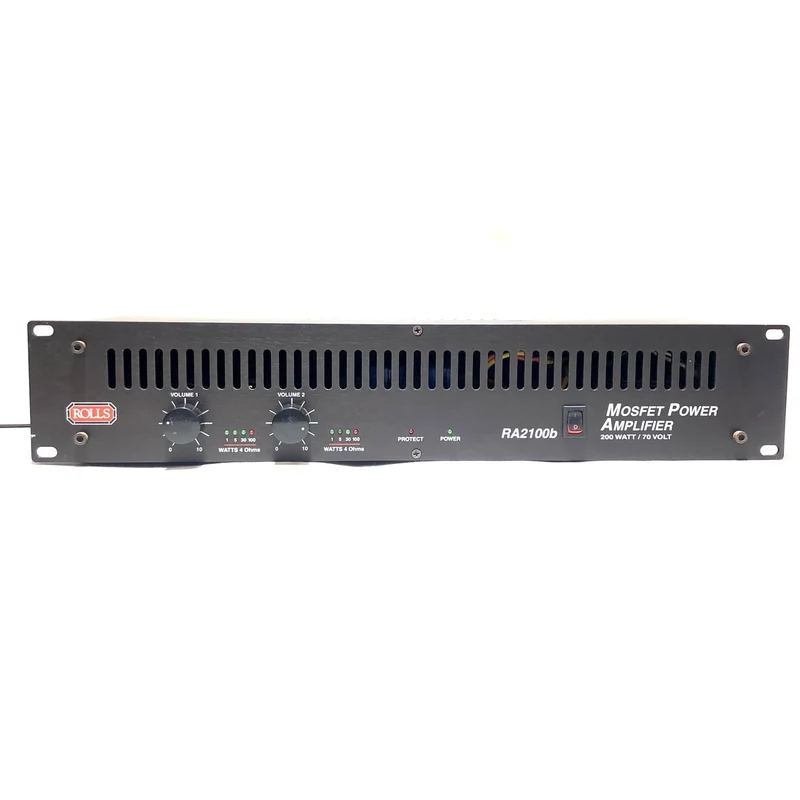

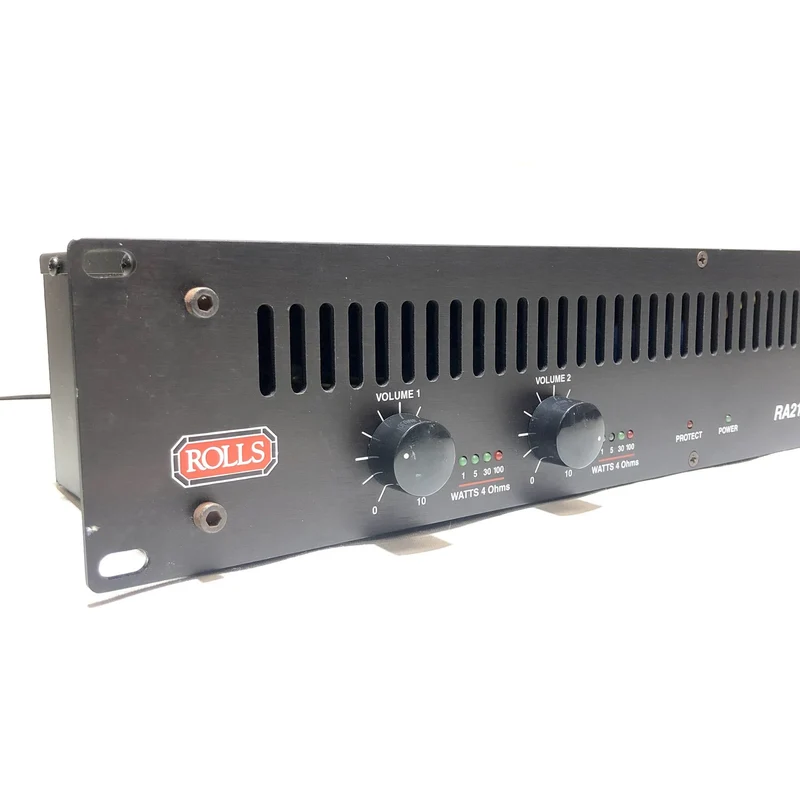

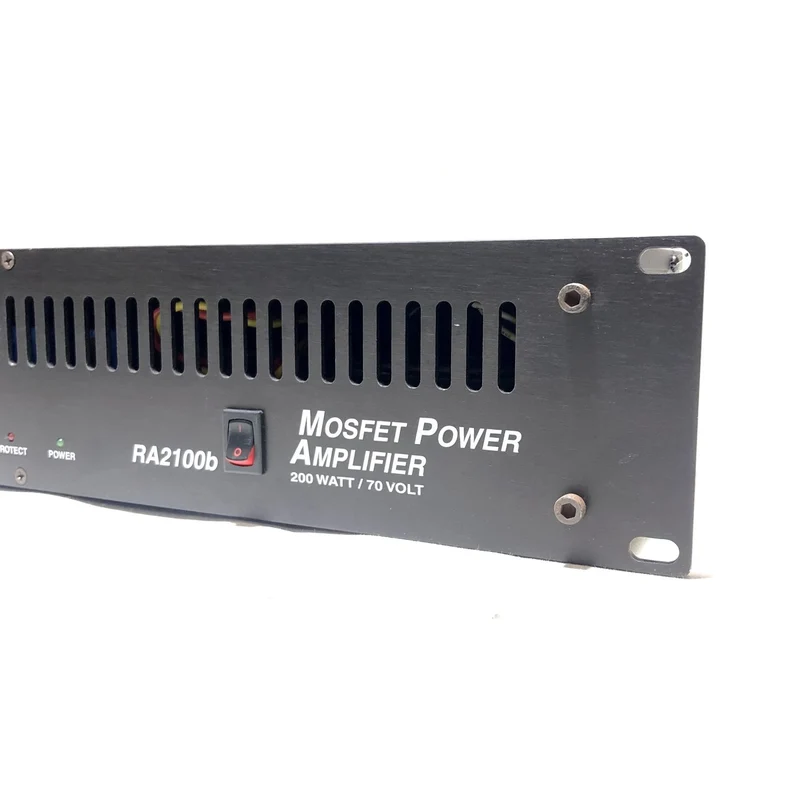

Rolls RA2100b Stereo 70V Power Amplifier #2466 - DEMO

The RA2100b is a stereo 100W/channel RMS power amplifier in a standard 2 rack space format. It is intended for professional audio and distributed musical applications. The unit features 100 Watts per channel RMS into four ohms, 85 Watts per channel into eight ohms, and for the contractor - 70 Volts / eight ohms. The unit also features MOSFET drivers in a voltage and current gain circuit and a one-second input turn-on delay. The RA2100b will drive 25 Volt speaker lines directly from each channel, or 70 Volt lines bridged.

Features:

• 100 Watts RMS per output (4 Ohm).
• 85 Watts RMS per output (8 Ohm).
• 200 Watts RMS into 70 Volt (8 Ohm).
• 1/4" and RCA inputs.
• Fault Protected Output Stage.

Power Output, Stereo	100 Watts RMS/ch. 4 Ohms, 85 Watts RMS/ch. 8 Ohms
Bridged	200 Watts into 70 Volt or 8 Ohms
Minimum Load Impedance	4 Ohms (8 Ohms bridged)
Sensitivity	1 VRMS for full output
THD	05% (500 Hz @ 1 Watt)
IMD	05%
S/N Ratio	95 dB A Weighted
Power Bandwidth	70 - 30 kHz +/- 3 dB
Damping Factor	150
Slew Rate	100 V/microSecond
Phase Shift	<10 Deg., 20 Hz - 20 kHz
Input Impedance	10 K Ohms balanced
Power	120 VAC 60 Hz 2.5A, 230 VAC 50 Hz
Size	19" x 3.5" x 7.5" (48 x 9 x 19 cm)
Weight	12 lbs (5.5 kg)
