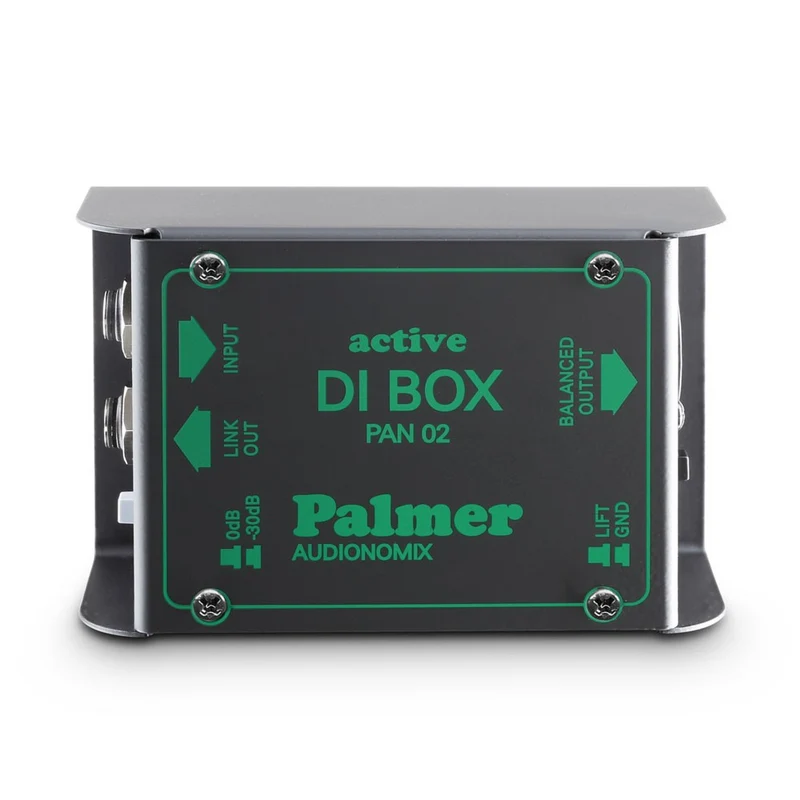

Palmer PAN 02 Active DI Box - DEMO

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Specifications

Product type	DI Boxes
Type	active
Channels	1
Inputs	1

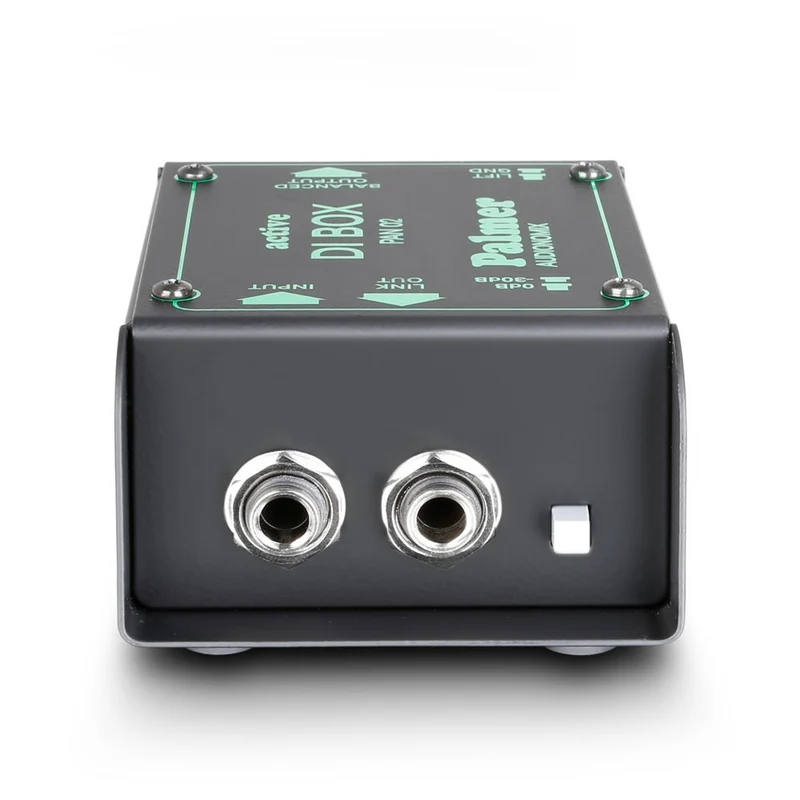

Input connectors	6.3 mm jack
Max. input level	+ 45 dBu
Input impedance	(@ 60 Hz) 1 M Ohm(s)
Input pad	0 / -30 dB
Outputs	1
THRU outputs/channel	1

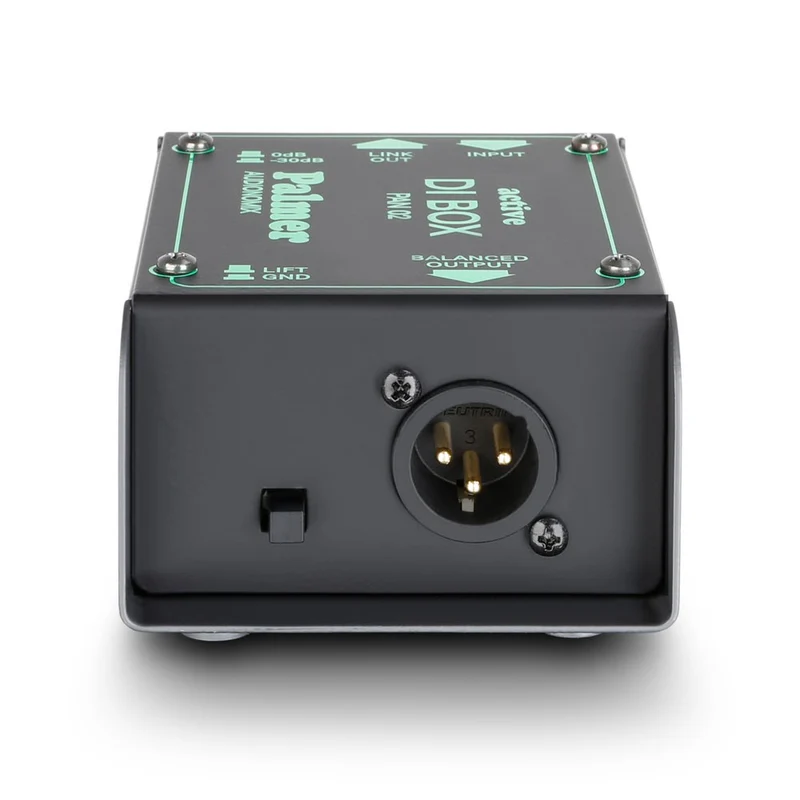

Output connectors	6.3 mm jack , XLR
Max. output level	+ 10 dBu
Output impedance	600 Ohm(s)
Frequency response	10 - 20000 Hz
Transformer balanced	Yes
Ratio	1 : 1
Controls	attenuator , ground lift

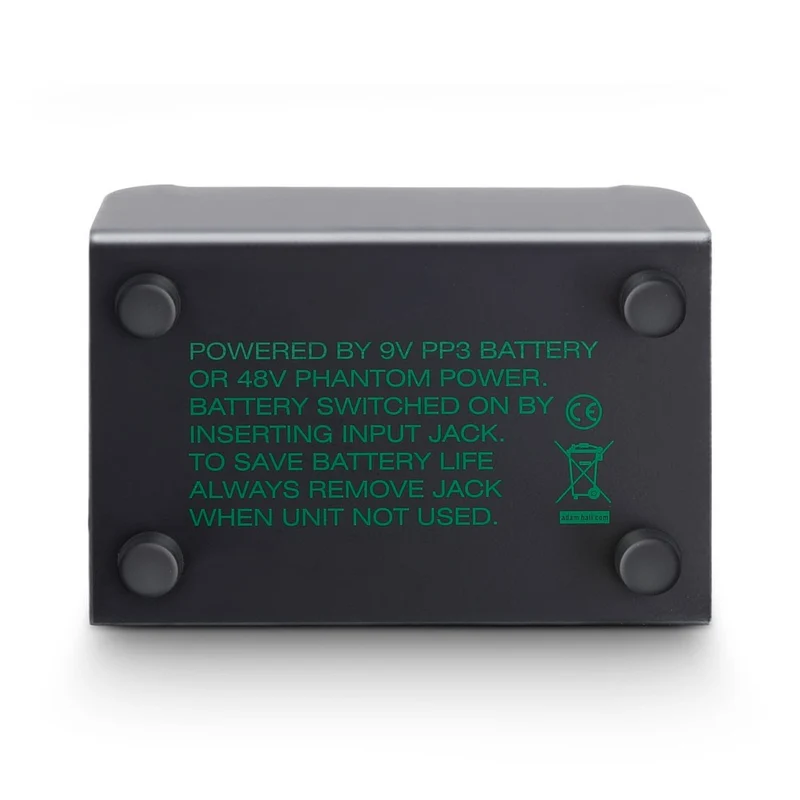

Operating voltage	+48 V phantom power , 9 V block
Power consumption	3.8 mA (9V) , 4 mA (48V)
Cabinet material	sheet steel
Cabinet surface	Powder coated
Width	110 mm
Depth	73 mm
Height	42 mm
Weight	0,353 kg
