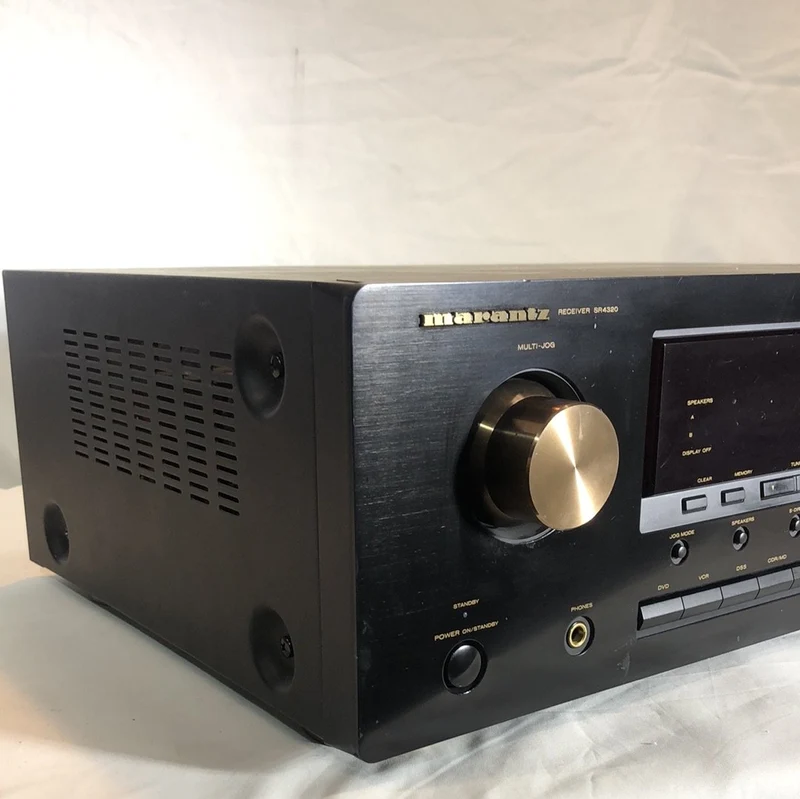

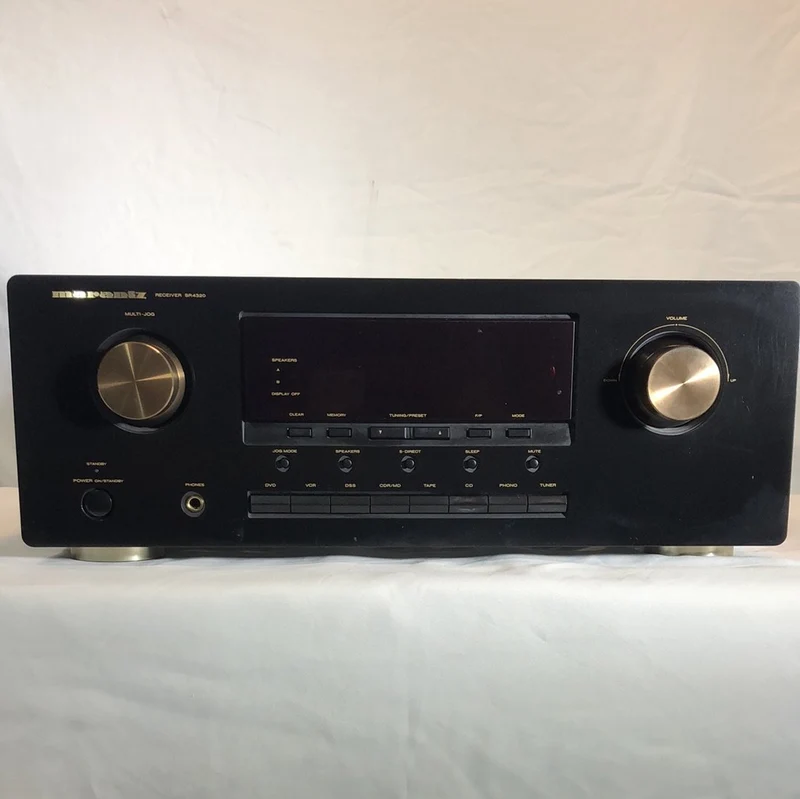

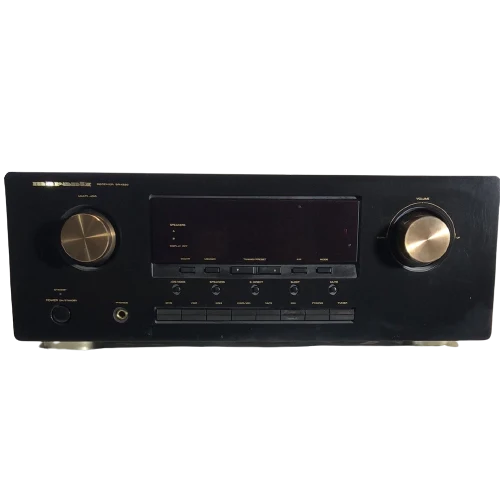

Marantz SR4320 Audiophile Stereo Receiver - USED

A full-featured stereo control center that combines exceptional sound quality with a host of performance and convenience features including remote control operation. The SR4320 provides seven audio inputs including phono to accommodate a variety of music sources, and features a fully discrete amplifier section for clear and powerful sonic performance. This enables it to form the core of a stand alone hi-fi system, but also to be added in to high quality Multi-zone installations.

• 80 Watts x 2 - Discrete Amplifier Stages
• Oversized Power Transformer
• Heavy Duty Speaker Terminals
• Preamp Outputs/Main-amp Inputs (for the
• addition of a More Powerful Amplifier - Perfect
• for Whole House Audio Distribution Systems)
• Video Inputs for DSS, VCR and DVD
• Video Output for VCR and Monitor
• Speaker Outputs: - A, B, A+B, OFF
• D-BUS (RC-5 In/Out) Remote Connection
• Full Function Remote Control

FEATURES		AUDIO SECTION
Number of Channels	2	Power Output (8 ohms)	80W x2
Discrete Amplifier Stage	•	Frequency Response (+/- 3 dB)	20Hz - 20kHz
Power Transformer	EI	THD (20Hz - 20kHz, 8 ohms)	< 0.08%
Speaker A/B	•	S/N Ratio	95 dB
Tone Control (Bass/Treble	•	TUNER SECTION FM
Preset Station Memory	30	Frequency Range	87.5 - 108.0MHz
Chassis	Metal	S/N Ratio (Mono/Stereo)	70/65 dB
IN/OUTPUTS		Distortion (Mono/Stereo)	0.2/0.3 %
AUDIO		Stereo Separation	40 dB (1kHz)
Analog L&R In	7	TUNER SECTION AM
Analog L&R Out	3	Frequency Range	520 - 1710kHz
Pre-Amplifier Out	•	Usable Sensitivity	Loop 400 _V
Main Amplifier In	•	S/N Ratio	50 dB
Phono In	•	GENERAL
Headphone Out	•	Color	Black
VIDEO		Front Panel	Brushed Plastic
Composite In	3	Remote Contro	Device Remote RC4320SR
Composite Out	2	Power Requirements	AC 120 V , 60Hz
OTHER		Power Consumption	220 W
D-Bus Remote (RC-5) In/Out	1/1	Dimension W x H x D (Inches)	175 /16" x 67 /16" x 143 /8"
AC Outlets (Switched/Unswitched)	1/1	Weight (lbs.)	18.5
