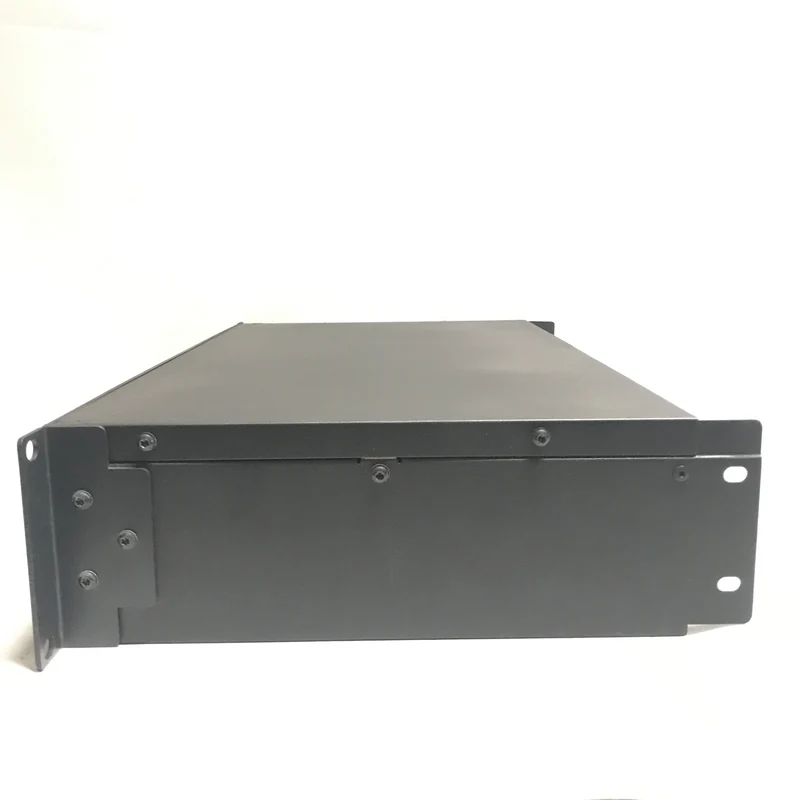

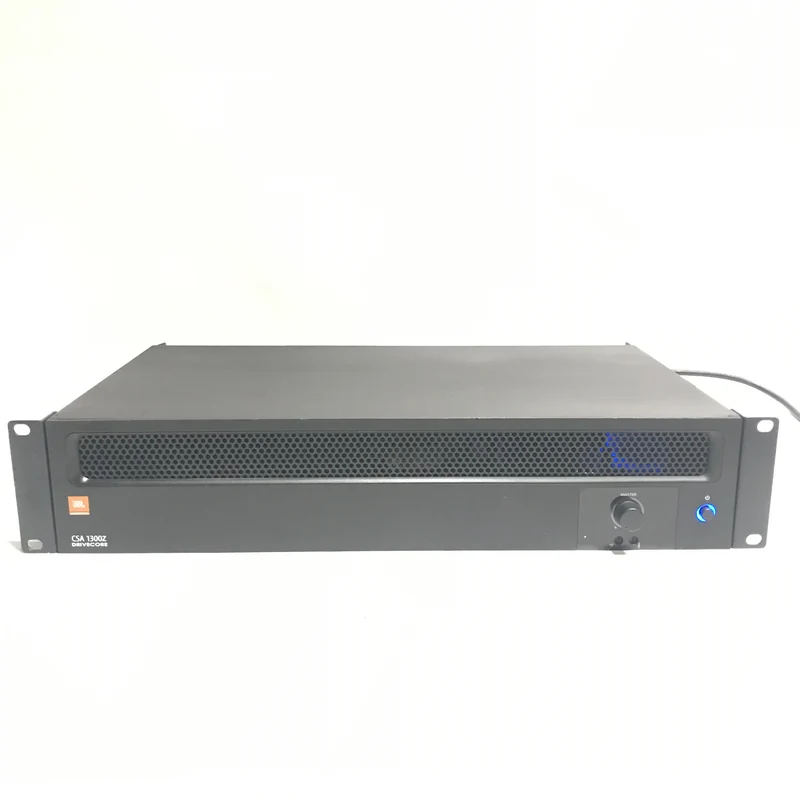

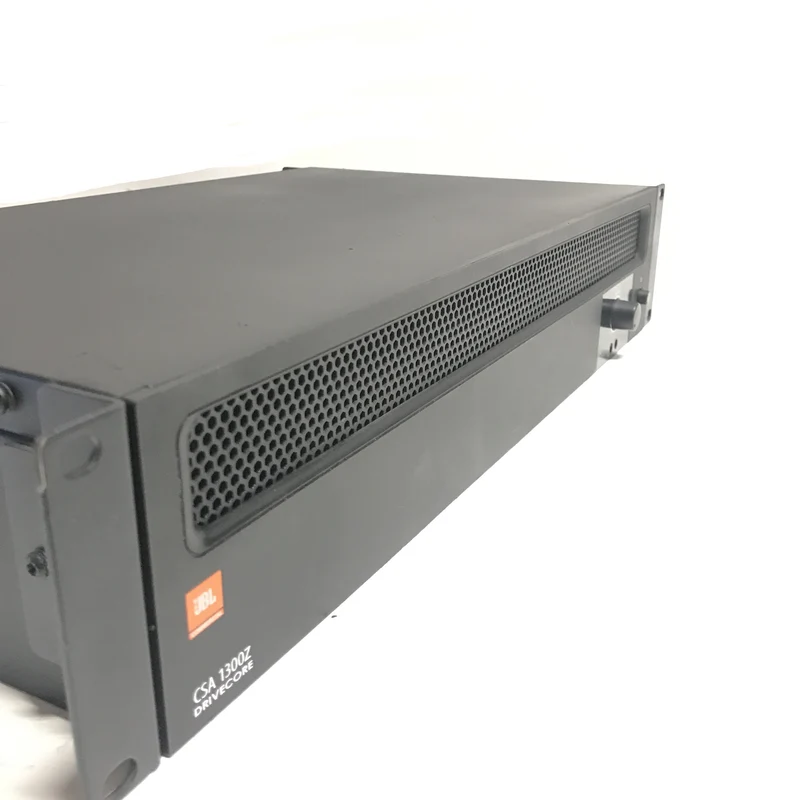

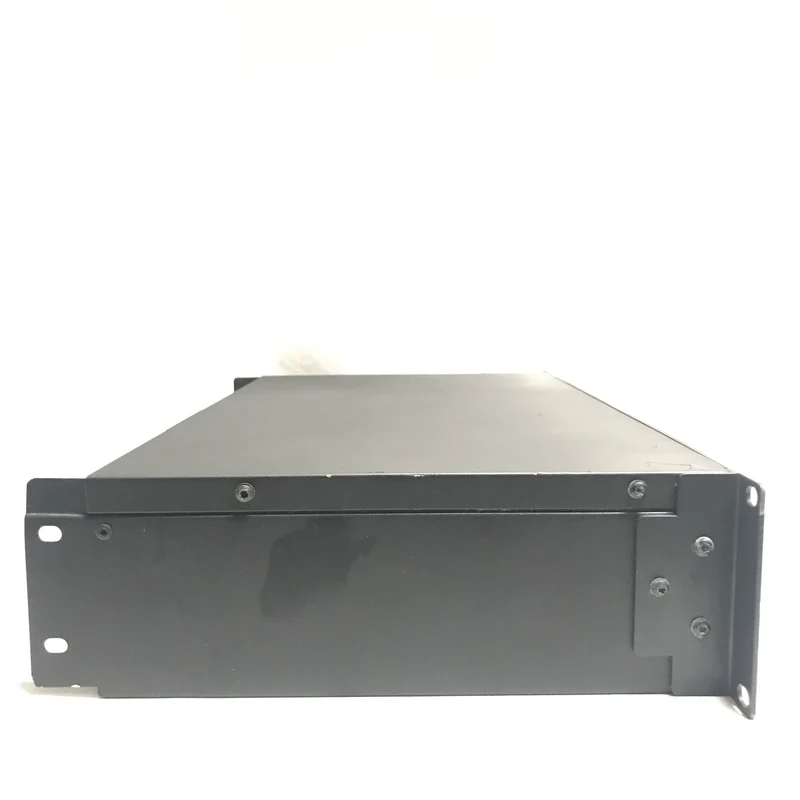

JBL Professional CSA1300Z Commercial Series Single-Channel 300-Watt Power Amplifier - USED

Built for installed sound applications, the CSA 1300Z Single-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module.

JBL CSA1300Z Specs

Number of Channels	1
Power Rating	4 Ohms / 8 Ohms: 300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage	4 Ohms (Minimum) 70 / 100 V

Performance

Frequency Response	20 Hz to 20 kHz ±1 dB (8 Ohms)
Input Sensitivity	Line: 775 mVrms (Balanced, at 8 Ohms) RCA: 300 mV (at 8 Ohms)
Input Impedance	Euroblock: 20 Kilohms (Balanced) RCA: 10 Kilohms
SNR	> 97 dBA
THD	< 0.5% (Full Range, at Rated Power)
Crosstalk	< -70 dBA (1 kHz)

Signal Processing

EQ

2-Band

Connectivity

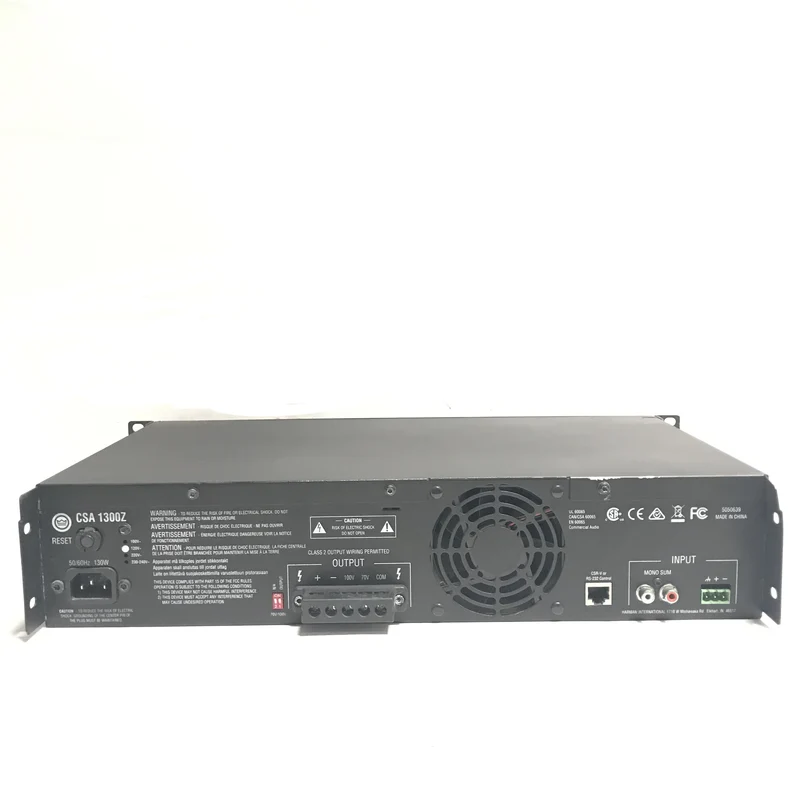

I/O	Block Balanced/Unbalanced Input 2RCA Summed-Mono Input Block Output

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Operating Temperature	32 to 95°F / 0 to 35°C
Storage Temperature	-4 to 185°F / -20 to 85°C
Dimensions	17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm
Weight	13.1 lb / 5.9 kg
