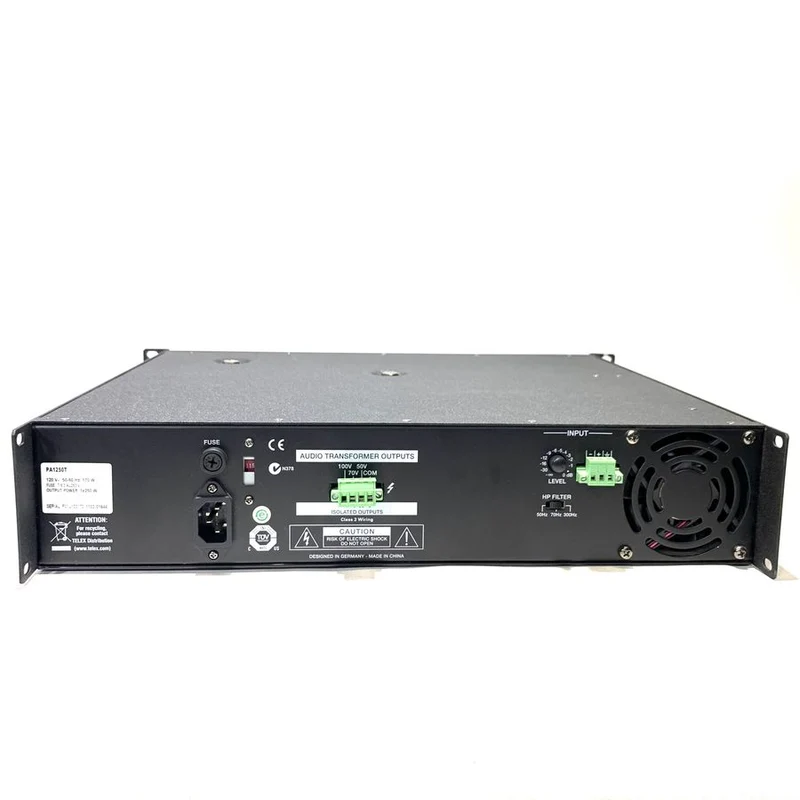

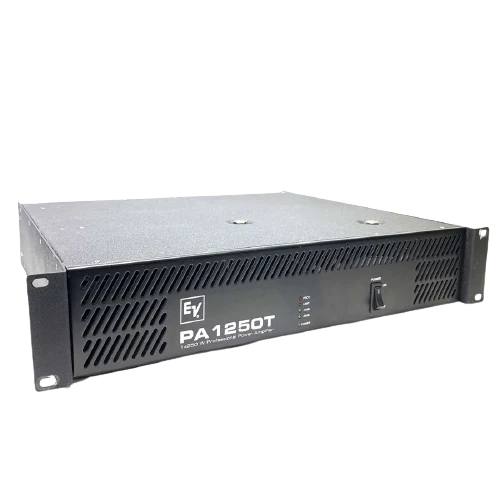

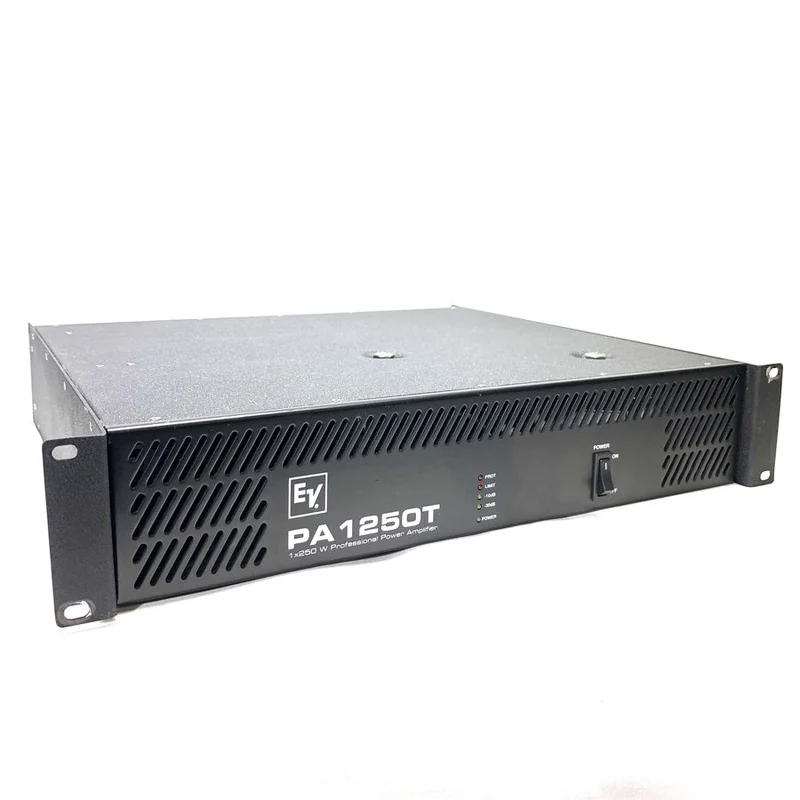

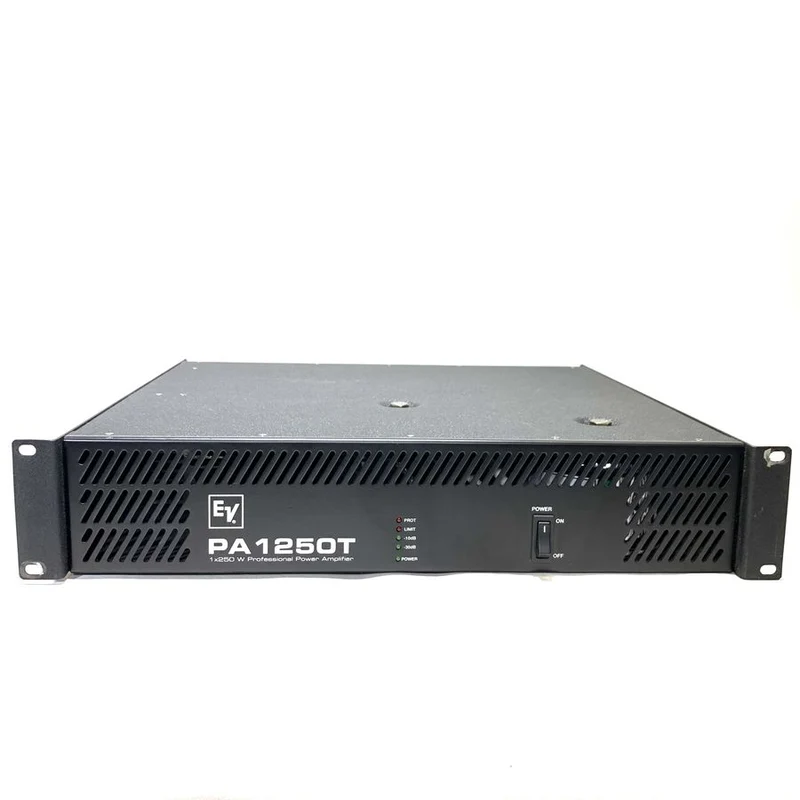

Electro-Voice PA1250T Rackmount Mono Power Amplifier 250W #2233 - USED

PA1250T

Single‑channel 250 W power amplifier

• Cool-running, saturation-free power for distributed installations
• Ideal for sound reinforcement, paging, and life safety
• 250 W mono for 70/100 V lines
• Compact 2 RU design
• Stepped rear-panel level attenuation
• Selectable 50 Hz or 300 Hz high-pass filter
• Thermal protection, peak limiting, turn-on delay
• Phoenix-type inputs and outputs
• Three-stage front-to-rear fans
• Integrated rack ears for direct mounting

Power Amplifier

Number of Channels	1
Power Rating	250 W (Full Range, 0.2% THD)
Load Impedance / Voltage	50 / 70 / 100 V

Performance

Frequency Response	65 Hz to 40 kHz -1 dB
Input Sensitivity	775 mV / 0 dBu
Input Impedance	>20 Kilohms (Balanced)
Max Gain	36.2 dB (at 50 V) 39.1 dB (at 70 V) 42.2 dB (at 100 V)
Max Voltage Swing	At 50 V: 59 V RMS At 70 V: 82 V RMS At 100 V: 117 V RMS
SNR	103 dB
THD
Intermodulation Distortion
Slew Rate	50 V: 29 V/μs 70 V: 41 V/μs 100 V: 61 V/μs

Signal Processing

Filters

1 x High-Pass

Connectivity

I/O	1 x Euroblock 3-Pin Input 1 x Euroblock 4-Pin Output

Power

AC Input Power	120 to 230 VAC, 50 / 60 Hz
Power Consumption	170 W (1/8 Power)

Physical

Display & Indicators	1 x Green LED (Power) 2 x Green LED (Signal) 1 x Red LED (Limit) 1 x Red LED (Protect)
Cooling	Fan (Variable Speed)
Dimensions	19.0 x 3.5 x 15.9" / 48.3 x 8.8 x 40.5 cm
Weight	36.3 lb / 16.5 kg

Packaging Info

Package Weight	42.5 lb
Box Dimensions (LxWxH)	23.5 x 23 x 7"
