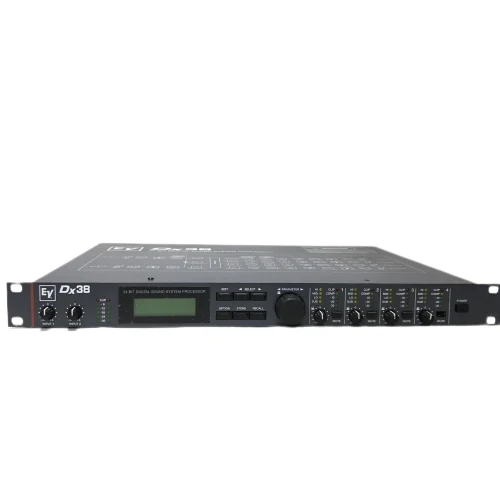

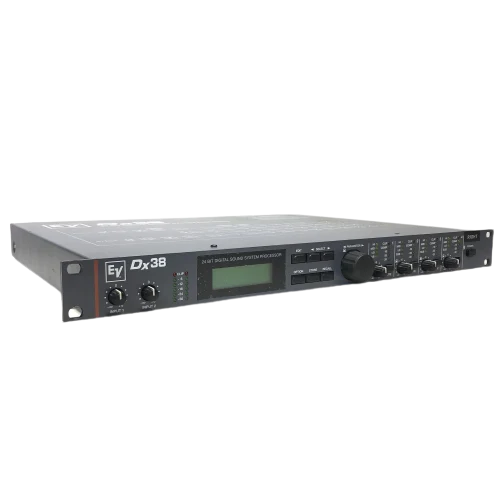

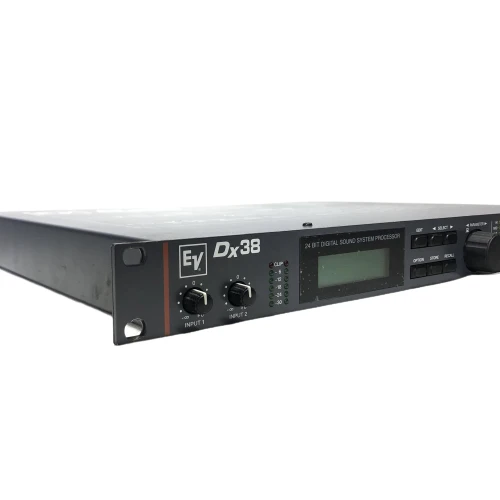

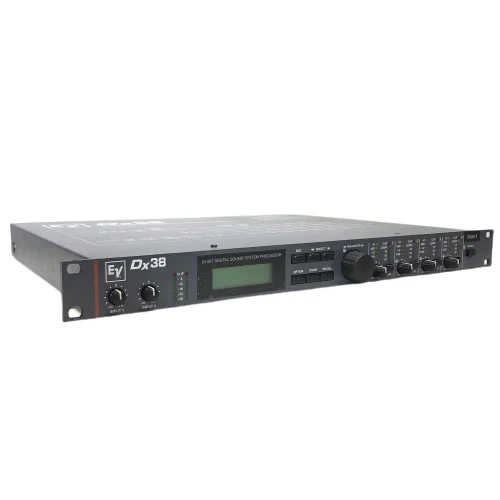

Electro-Voice DX38 Programmable 24-bit Digital Sound System Processor #2359 - USED

Electro-Voice Dx 38 is a 1RU rackmount, programmable digital multi-speaker P.A. system processor and controller. The unit is equipped with 24-bit/48kHZ resolution A/D and D/A converters, 48-bit internal processing, and a versatile set of selectable, configurable EQ's, crossovers, delays, and compressor/limiters.

All audio connectors on the Dx 38 are electronically balanced XLR's, and a complement of MIDI In, Out and Thru jacks are included for external control and SysEx backup and software or preset updates.

• 24-bit/48kHz 1RU rackmount programmable multi-processor for P.A. speaker systems with Plexiglas security cover
• 24-bit AD/DA conversion, 128x oversampling
• 48-bit internal processing resolution
• Processors include: 4 digital compressor/limiters, 3 master delays, 4 channel delays, crossovers with selectable 6/12/18/24dB/oct. slopes, Butterworth, Bessel, and Linkwitz-Riley types, and 26 parametric equalizers
• Filtering includes low-shelving and hi-shelving EQ, switchable LPN(low-pass notch filter), low-cut, hi-cut and all-pass filters
• 50 preset and 30 user memory locations, internal Flash memory for software system and preset updates
• 122 x 32-dot backlit LCD display
• PC-based operating and configuration software, Windows 95-98 compatible
• Balanced XLR I/O's, Input/Output Meter Instrument, Compressor and Clip LED's
• MIDI In, Out and Thru

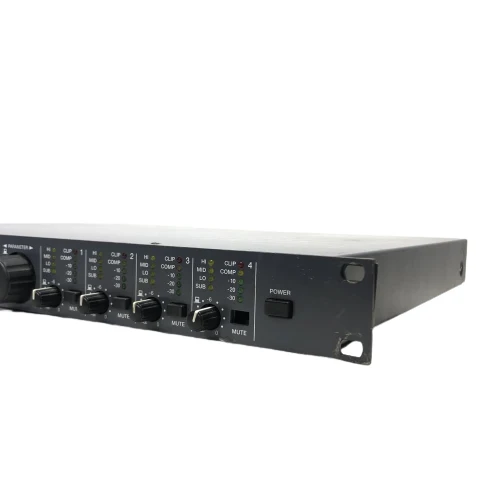

• Separate Input/Output level controls, output Mute switch, channel function indicators SUB, LO, MID, HI

Frequency Response	20 Hz - 20 kHz, -0.5dB
Dynamic Range	115dB

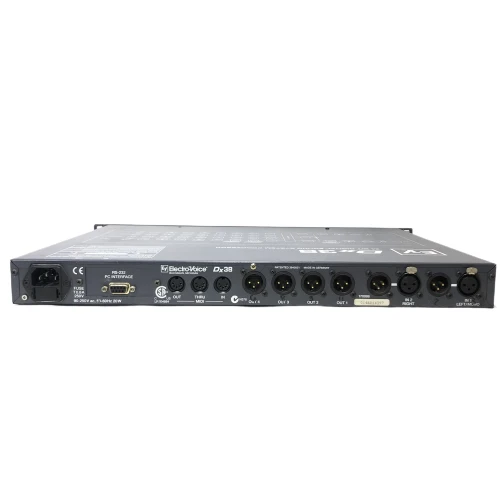

Input Connections	2 x XLR Female, Balanced 1 x MIDI In
Output Connections	4 x XLR Male, Balanced 2 x XLR Male, Direct Out 1 x MIDI Out 1 x MIDI Thru
Input Impedance	20 kOhms
Output Impedance
Maximum Input Level	+30dBu
Maximum Output Level	+21dBu
Sample Rate	48kHz
RTA Mic Phantom Voltage	No
Crosstalk (Main Outputs)	Not Specified by Manufacturer
THD & Noise
Dimensions	19 x 1.7 x 14.7" (483 x 43.6 x 374mm)
Weight	11 lb (5 kg)
