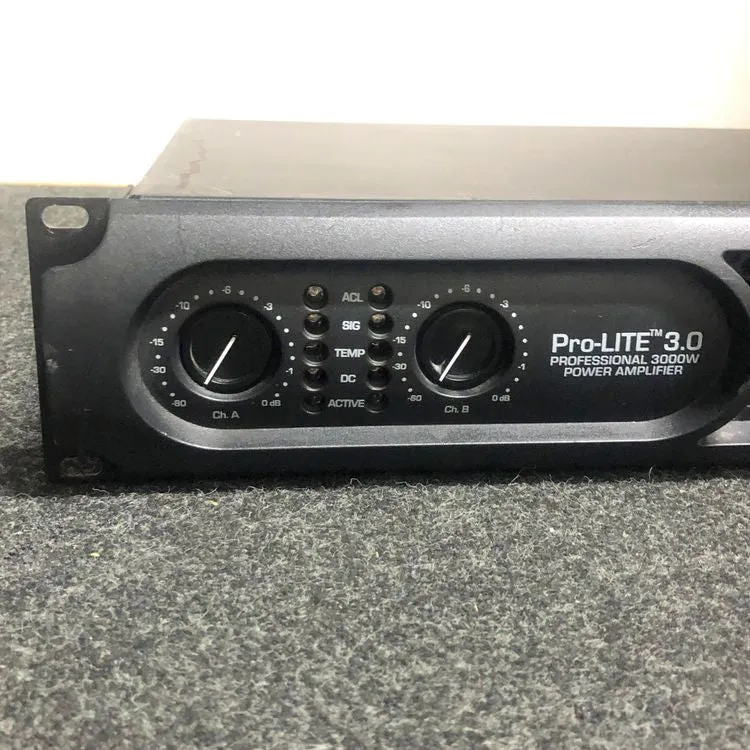

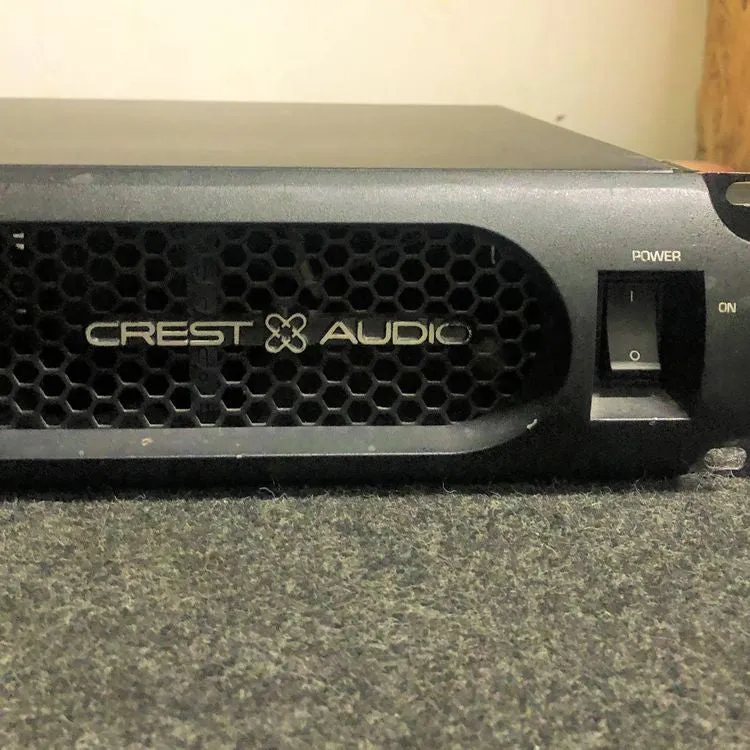

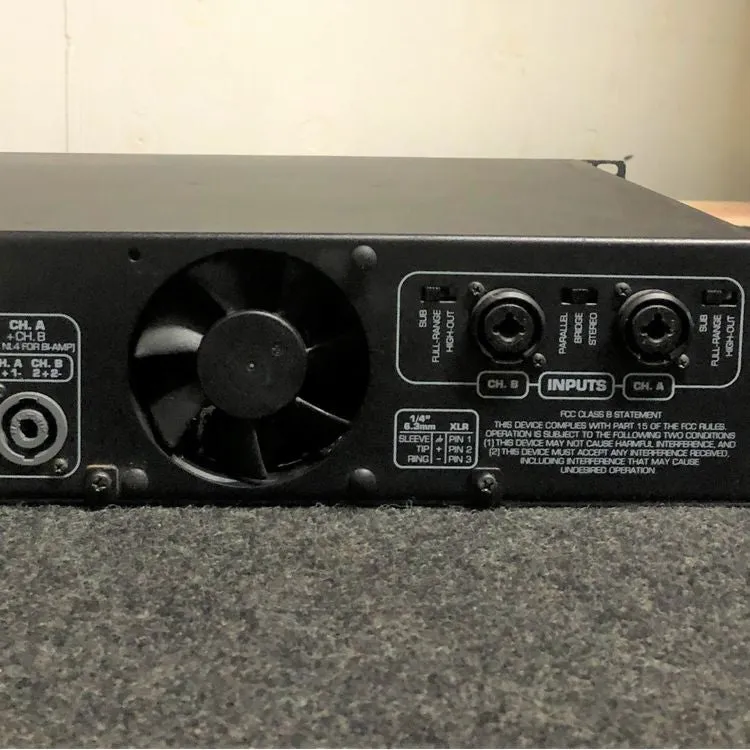

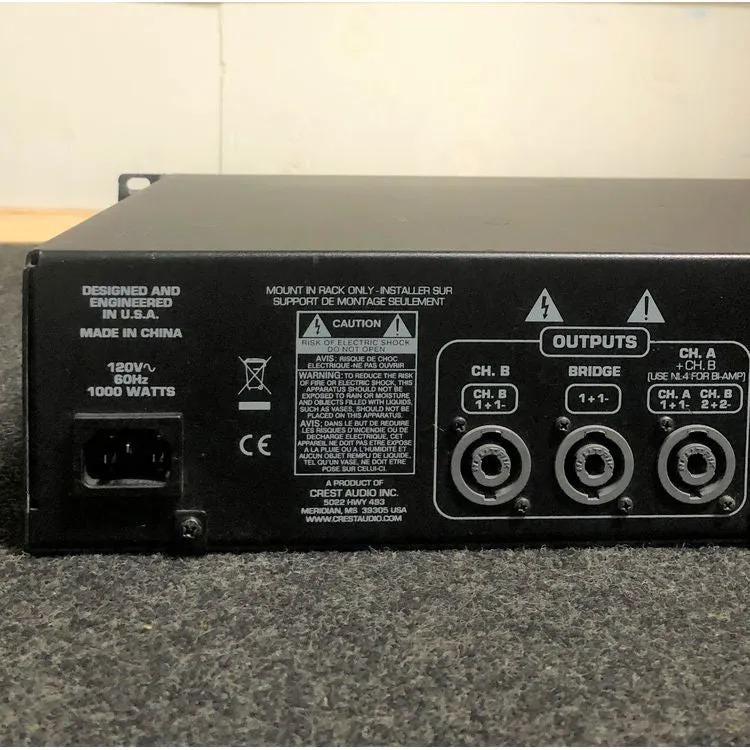

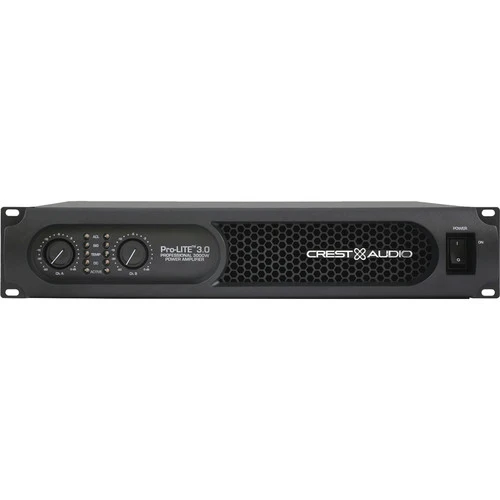

Crest Audio Pro-LITE 3.0 Professional Power Amplifier 830W - USED

The 2 RU Crest Audio Pro-LITE 3.0 Professional Power Amplifier is designed with a resonant switch-mode power supply, and high-speed class-D topology. The amplifier can be operated in parallel, stereo, or bridged mode. It features two channels with independent, fourth-order 100 Hz crossovers, and a power rating of 830W per channel at 4 Ohms stereo, and up to 3000W bridged at 4 Ohms. The robust power supply is designed to allow the amplifier to deliver a consistent, stable performance with low frequencies. The Pro-LITE amplifier is built with heavy-duty circuit boards, and extra-large capacitors, and inductors designed to optimize 2-Ohm operation. The on-board protection suite includes Crest Audio's proprietary ACL (Automatic Clip Limiting) circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers. It also features DC, Temp, Signal, and Active safeguards, all referenced on the front panel with LED indicators.

• Two channel independent crossovers
• ACL (Automatic Clip Limiting) protection
• Pro-LITE class-D topology
• Detented input controls
• Combination XLR-1/4" inputs
• 4-pole twist lock output connectors
• Rackmountable

Power Amplifier

Number of Channels	2
Power Rating	8 Ohms: 450 W per Channel (1 kHz, 0.15% THD) 1550 W Bridged (1 kHz, 0.15% THD) 4 Ohms: 830 W per Channel (1 kHz, 0.15% THD) 3000 W Bridged (1 kHz, 1% THD) 2 Ohms: 1500 W per Channel (1 kHz, 1% THD)

Performance

Frequency Response	20 Hz to 28 kHz +0/-3 dB (at 1 W)
Damping Factor	>255 at 8 Ohms
Input Sensitivity	0.74 V (at 4 Ohms) 0.71 V (at 2 Ohms)
Input Impedance	15 Kilohms (Balanced)  7.5 Kilohms (Unbalanced)
Max Gain	37 dB
SNR	>-100 dBA (at 4 Ohms)
Crosstalk	>-70 dB (at 1 khz)
Slew Rate	:>12 V/μs
CMRR	>-76 dB

Signal Processing

Crossover

Low-Pass: 100 Hz, 18 dB/Octave High-Pass: 100 Hz, 12 dB/Octave

Connectivity

I/O	2 x Combo XLR-1/4" Input 2 x speakON NL4 Output 1 x speakON NL4 Bridged Output

Power

AC Power Connector	1 x IEC
Power Consumption	60 W (Idle)  2 Ohms: 540 W (1/8 Power)  1310 W (1/3 Power)  4 Ohms: 320 W (1/8 Power)  700 W (1/3 Power)  8 Ohms: 190 W (1/8 Power)  400 W (1/3 Power)

Physical

Display & Indicators	2 x LED (Power) 2 x LED (DC) 2 x LED (Thermal) 2 x LED (Signal) 2 x LED (Limit)
Cooling	Fan (Variable Speed)
Dimensions	3.5 x 19.0 x 10.5" / 8.9 x 48.3 x 26.7 cm
Weight	12.2 lb / 5.5 kg

Packaging Info

Package Weight	15.2 lb
Box Dimensions (LxWxH)	21.5 x 15 x 7"
