Biamp

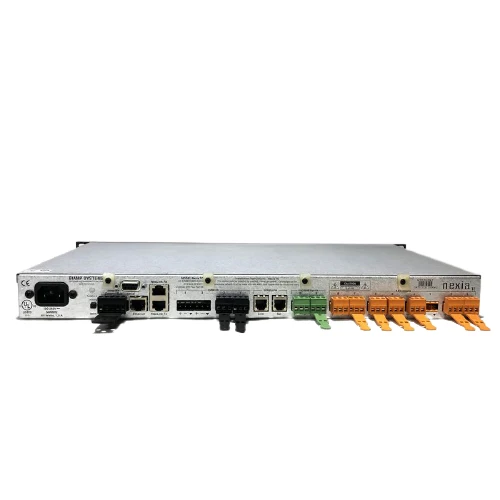

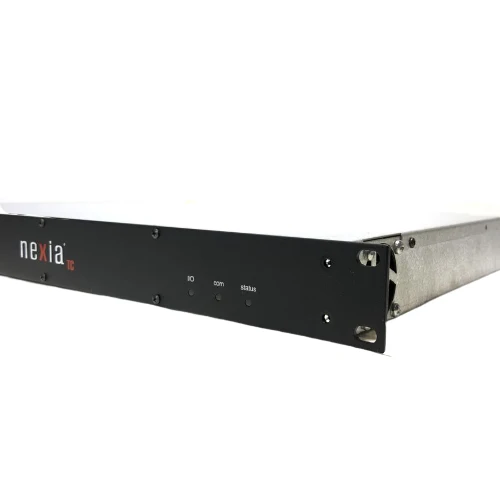

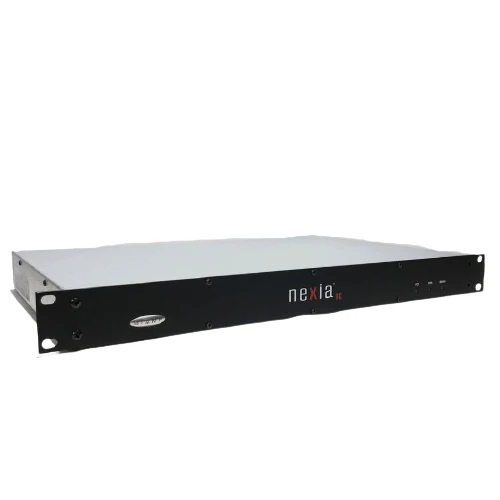

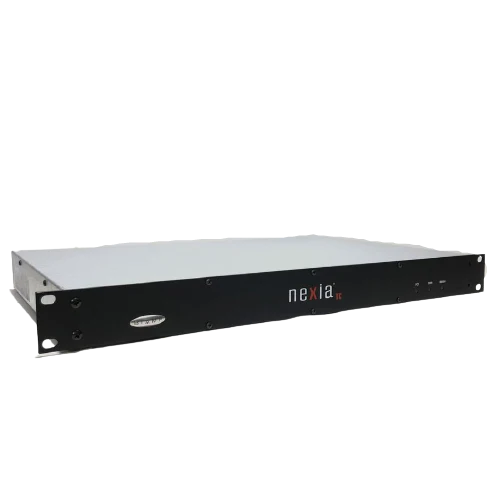

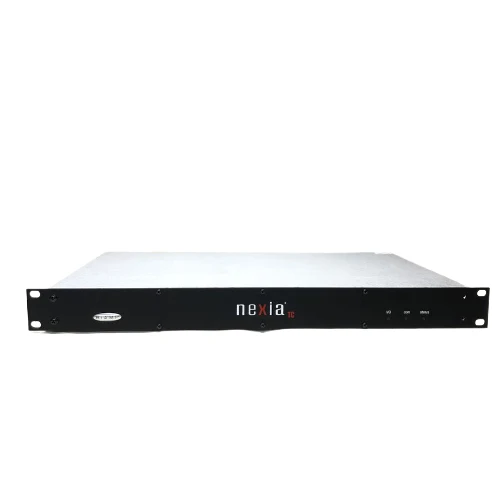

Biamp NEXIA TC Digital Signal Processor for Teleconferencing Applications #2306 - DEMO

36,10 €62,13 €41% OFF
Retours sous 30 joursGarantie 1 an
Livraison estimée: 7 octobre - 9 octobre.
36,10 €
Quantité
Moyens de paiement
Détails du produit

Nexia TC is a digital signal processor with 8 wide-band AEC mic/line inputs, 2 standard mic/line inputs, 4 mic/line outputs, and a telephone interface. Intended for a variety of teleconferencing applications, Nexia TC uses Biamp’s Sona™ AEC technology for more natural sound and full-duplex transmission of speech. Nexia TC includes a broad selection of audio components, routing options, and signal processing. The internal system design is completely user definable via PC software, and can be controlled via daVinci™ software screens, RS-232 control systems, and a variety of optional remote controls. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink digital audio linking.

  • 8 wide-band AEC balanced mic/line inputs
  • 2 standard balanced mic/line inputs
  • 4 balanced mic/line outputs
  • Telephone interface with line & set connections
  • Ethernet port for software configuration/control
  • Serial port for third-party RS-232 remote control
  • NexLink ports for multi-unit system designs
  • Nexia software for Windows®
  • Pre-configured I/O with definable processing
  • CE marked, UL listed and RoHS compliant
  • Ability tselect, view, and calibrate:
    • Mixers, Equalizers, Filters, Crossovers, Dynamics,
    • Routers, Delays, Controls, Meters, Generators,
    • Diagnostics
  • Telephone Interface capabilities include:
    • Initiation of outgoing calls
    • Detection and answering of incoming calls
    • Line echcancellation
    • TouchTone™ decoding
    • Caller ID reception
    • Call progress detection
    • Line intrusion detection
    • Continuous line status and fault monitoring
Frequency Response (20Hz~20kHz @ +4dBu) +0/-0.4dB
THD+N (20Hz~20kHz @ +4dBu) Line level
Mic level < 0.05% EIN (20Hz~20kHz, 66dB Gain, 150Ω)
Dynamic Range (20Hz~20kHz, 0dB) > 105dB
Tail Length up to 300ms
Convergence up to 100dB/sec
Input Impedance (balanced) 8kΩ
Maximum Input +24dBu
Maximum Gain 66dB
Input Gain Range (variable) 0 - 66dB
Output Impedance (balanced) 200Ω
Maximum Output +24dBu
Full Scale Output Level (six selections) -31dBu ~ +24dBu
Telephone Interface
Ringer Equivalency Number 0.0dB
Dynamic Range 67dBu
Frequency Response 250Hz ~ 3.4kHz
THD < 0.3%
Transhybrid Response 30dB
Phantom Power +48 VDC (7mA/input)
Cross Talk (channel to channel @ 1kHz)
Line level < -80dB
Mic level < -75dB
Power Consumption (100~240VAC 50/60Hz) 65W
Overall Dimensions
Height 1.75 inches (44 mm)
Width 19.0 inches (483 mm)
Depth 11.2 inches (283 mm)
Weight 8.6 lbs (3.9 kg)
Sampling Rate 48kHz
A/D - D/A Converters 24-bit
Compliance
CE marked (Europe)
UL listed (USA & Canada)
RoHS Directive (Europe)
