BEH-MA6000M Quality Broadcast Transmission Audio Processor with Intelligent Loudness Management OPEN BOX

BEH-MA6000M Quality Broadcast Transmission Audio Processor with Intelligent Loudness Management

The EUROCOM MA6000M 13-Channel Mixer from Behringer is designed for continuous operation in distributed music and paging for conference rooms, houses of worship, restaurants, or clubs. It features eight main channels with combination XLR/TRS and five-pin Euroblock microphone/line inputs with selectable phantom power, trim control, and independent high and low EQ knobs. The unit has an additional four-pin Euroblock telephone/page input and four stereo RCA inputs for playback from external sources such as CD or MP3 players, cables boxes, and radio or TV tuners. The MA6000M also features two-zone operation, allowing you to route your audio to two separate outputs for multiple zone or music on hold (MOH) purposes.

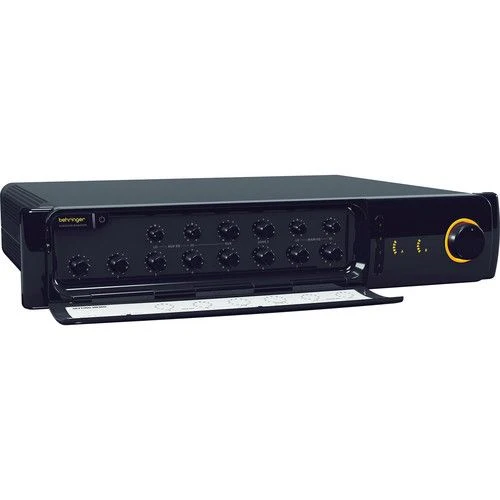

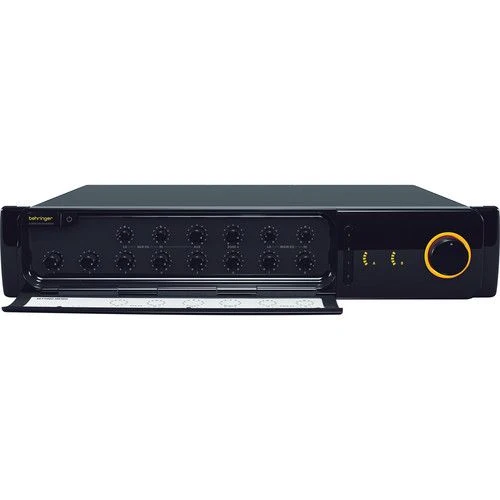

The unit has front panel controls that give you quick access to input level, lo and hi EQ for main and auxiliary channels, and auxiliary input and zone 2 volume controls. The included bridging input and output five-pin Euroblock connectors allow for multiple units to be connected.

Switch-Mode Power technology reduces energy cost 4 front panel buttons select which four rear-panel Aux inputs are active and feeding the Main mix bus at any given time Multi-featured, dedicated page input with assignable Chime, switchable Mic/Line and Phantom power Main mix output features switchable mic/line level settings Volume, power, and aux channel selection are controllable with optional wired remote control Auto-dimming control illumination, dual channel VU meter, Power switch, and dual-function indicator ring surrounding Master volume control Main Mix output on balanced Euroblock connector featuring switchable Mic/Line level Zone 2 or MOH assignable output with independent gain control

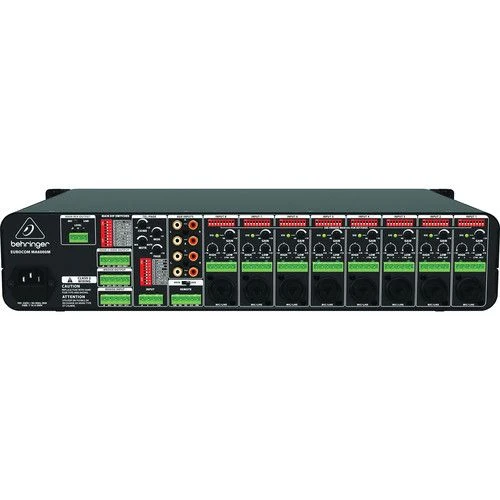

Audio Inputs	8x Combo XLR/TRS mic/line 8x 5-Pin Euroblock mic/line (in parallel) 1x 5-Pin Euroblock bridge input 4x Stereo summed RCA auxiliary 1x 4-Pin Euroblock page input
Input Impedance	Mic: -50 to 0 dBV @ 600 Ω (electronically balanced) Line: -27 to 0 dBV @ 600 Ω (electronically balanced) Auxiliary : -10 dBV @ 10 kΩ (unbalanced)
Preamp Output	70 V Input: 1x 5-Pin Euroblock Impedance: 0 dBV @ 600 Ω (balanced) 4 Ω Input: 1x 5-Pin Euroblock Impedance: 0 dBV @ 600 Ω (balanced) Hi-Z & Lo-Z Preamp Output: 2x 5-Pin Euroblock Impedance: 0 dBV @ 600 Ω (balanced)
Phantom Power	24 VDC Switchable on inputs 1 to 8 and Tel/Page input
Audio Outputs	1x 3-Pin male Euroblock main mix output (mic/line switchable) 8x 5-Pin Euroblock direct outs 1x 5-Pin Euroblock bridge out 1x 5-Pin Euroblock zone 2/MOH out
Output Impedance	Mic: -36 dBV @ 1 kΩ Line: 4 dBV @ 600 Ω Direct Out: 0 dBV @ 600 Ω (balanced) Zone 2: 4 dBV @ 600 Ω (balanced) MOH: 0 dBV @ 600 Ω (balanced)
Dynamic Range	Mic: 65 dB Line: 80 dB
THD & Noise	0.5% @ 1 kHz (rated output)
Frequency Response	50 Hz to 18 kHz (± 2 dB)
Tone Controls	Master: Low: ± 10 dB @ 100 Hz High: ± 10 dB @ 12 kHz Inputs 1 to 8: Low: ± 15 dB @ 100 Hz High: ± 15 dB @ 12 kHz
Connections	Remote: 1x 5-Pin Euroblock Common: -5 VDC @ 100 mA (short-circuit protected) Remote Power: 5 VDC @ 100 mA (current limited, short-circuit protected) RVC: 10 kΩ linear taper potentiometer Aux Input Select: used in conjunction with wall remote to select aux feed Power On/Off: 5 VDC voltage make contact input, no open voltage Inputs 1 to 8: no voltage make contact input; open voltage 5 VDC, short circuit < 10 mA
Indicators	Power: Yellow LED ring illumination Overload: Red LED ring illumination Output Level: LED VU meter (yellow and red when clipping)
Power Supply	Mains Voltage: 100 to 120/220 to 240 VAC, 60/50 Hz (switchable) Power Consumption: 26 W Fuse: T 1 AH 250 V Mains Connector: Standard IEC Receptacle
Dimensions	3.5 x 17.0 x 16.0" (8.8 x 43.2 x 40.6 cm)
Weight	11 lb (5 kg)

Packaging Info

Package Weight	14.45 lb
Box Dimensions (LxWxH)	22.5 x 17 x 7.3"
