Australian Monitor AMC Mix 4-Channel Line and Microphone Mixer # - USED

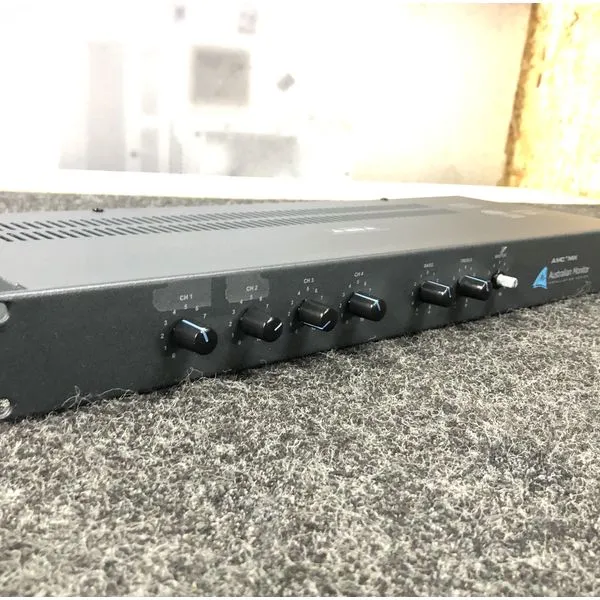

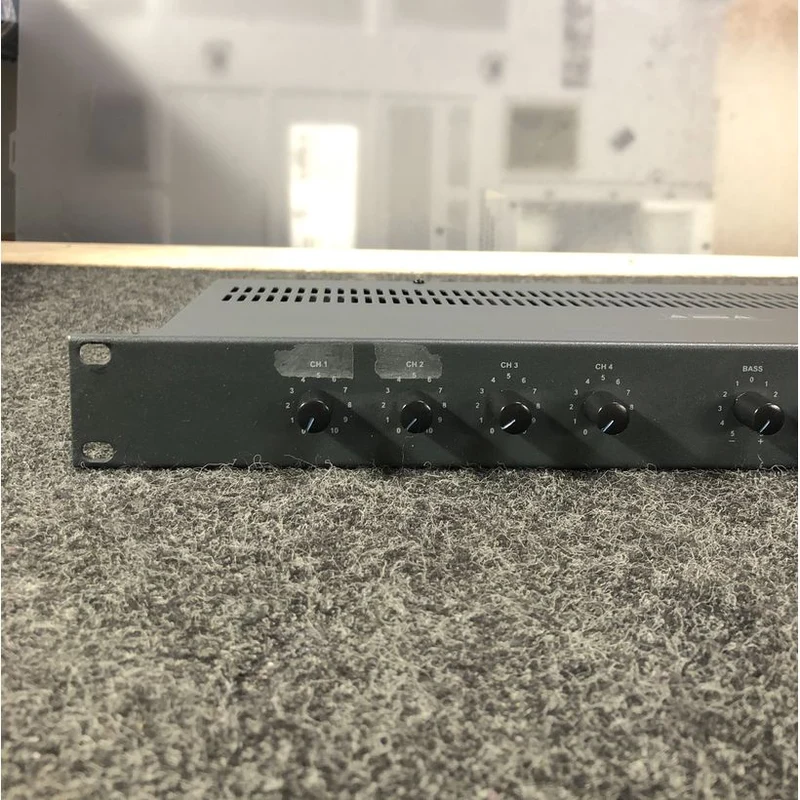

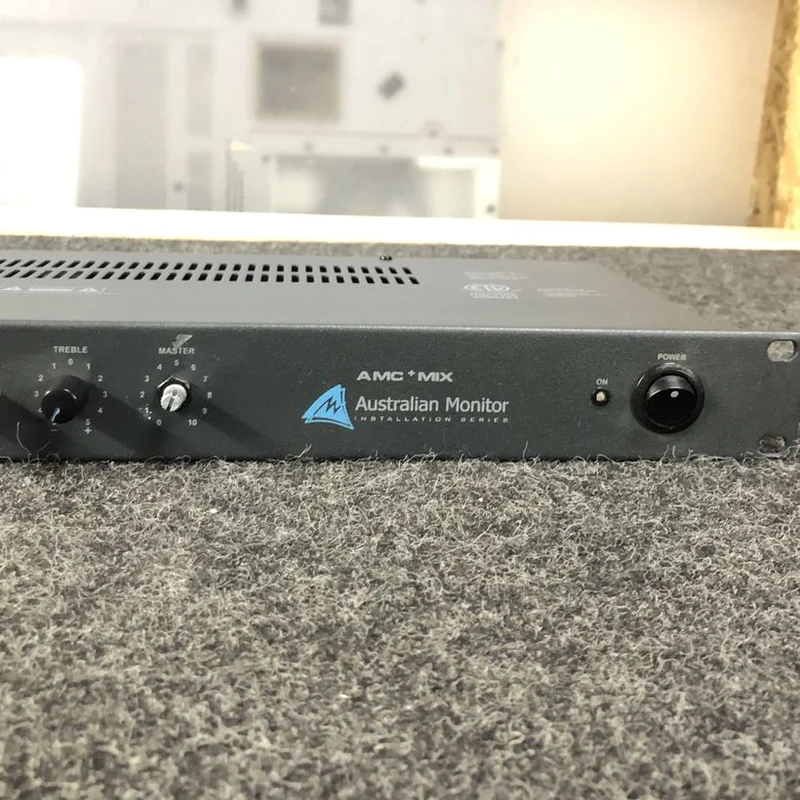

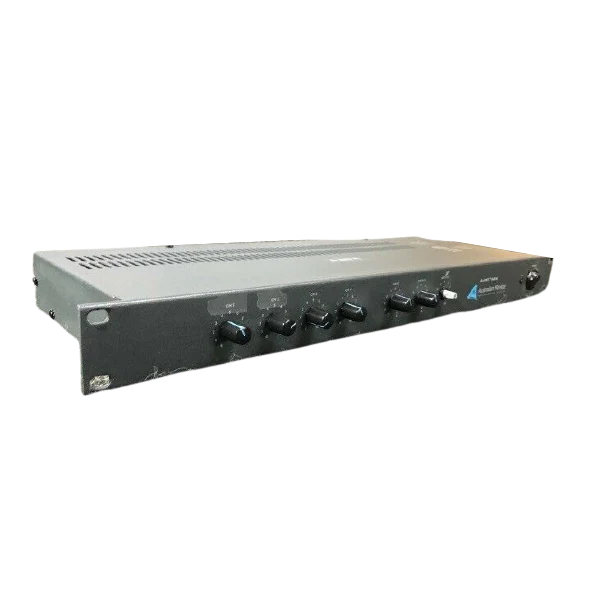

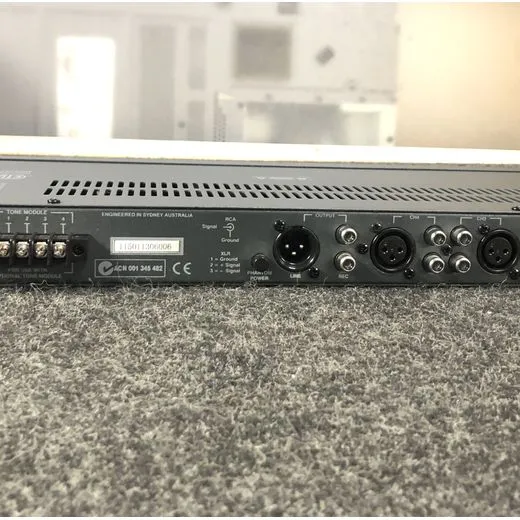

Australian Monitor AMC+ Mix 4-Channel Line and Microphone Mixer is a versatile, single space 19-inch rack mountable unit with 4 universal microphone and line level inputs. A defeatable priority feature maintains level on channel 1 while lowering signal the remaining channels. All channels features XLR and RCA input connectors, and +12VDC phantom power for condenser microphones. An optional Australian Monitor ATC5488 Tone Module may be used. The front panel features individual channel level control, master level control and tone controls.

• 4 microphone / line input mono mixer
• Master volume, overall treble and bass controls
• 19-inch single space (1RU) enclosure
• Optional tone generator
• On board priority
• 12VDC phantom power

Frequency Response	20Hz - 20kHz (+0,-3dB)
THD	< 0.5% @ 1kHz
Signal-to-Noise Ratio	> 84dB (all pots at centre position)
Crosstalk	> 60dB
Tone Controls	Bass @ 100Hz: +/- 12dB Treble @ 10kHz: +/- 9dB
Sensitivity	Mic Sens 0.7mV, -61dBu Imp 1k 3ohm RCA 500mV, -4dBu Imp > 100kohm
Line Max Input Level	XLR mic -20dBu RCA >30dBu
Max Output	+14dBu
Outputs	Master out: Nominal Level 0dBu into 1k ohm, Imp 100ohm Mono Rec out: Nom -16dB into 10k ohm, Imp 10kohm
Power Input	20VAC via 2.1mmx5.5mm barrel socket
Power Consumption	7 VA
Dimensions (HxWxD)	1.75 x 19 x 7.54" (44 x 482 x 191.5mm)
Weight	5.5lb (2.5kg)

Packaging Info

Package Weight

2.222 lb
