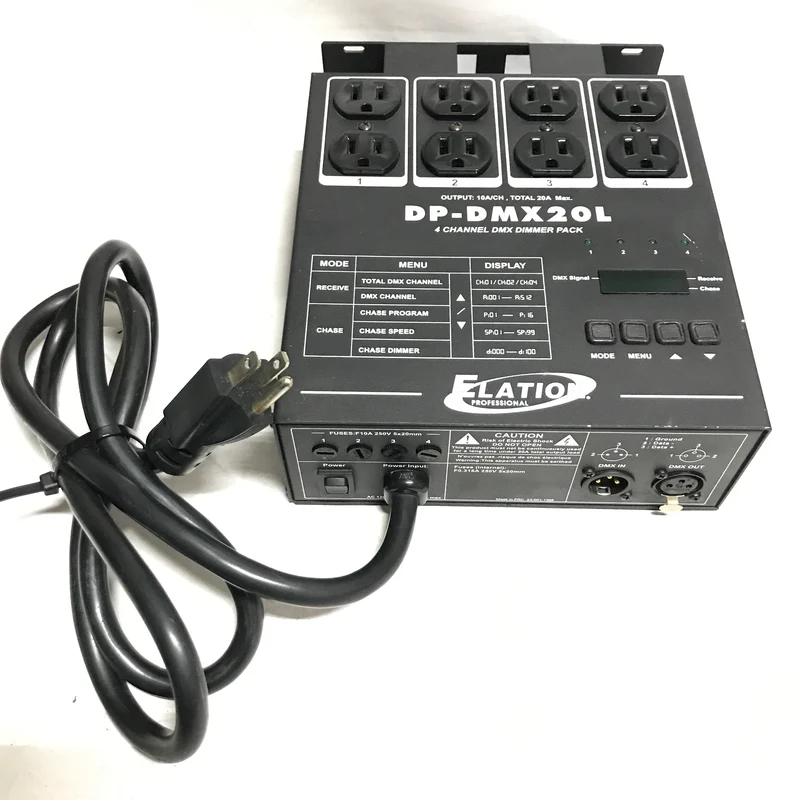

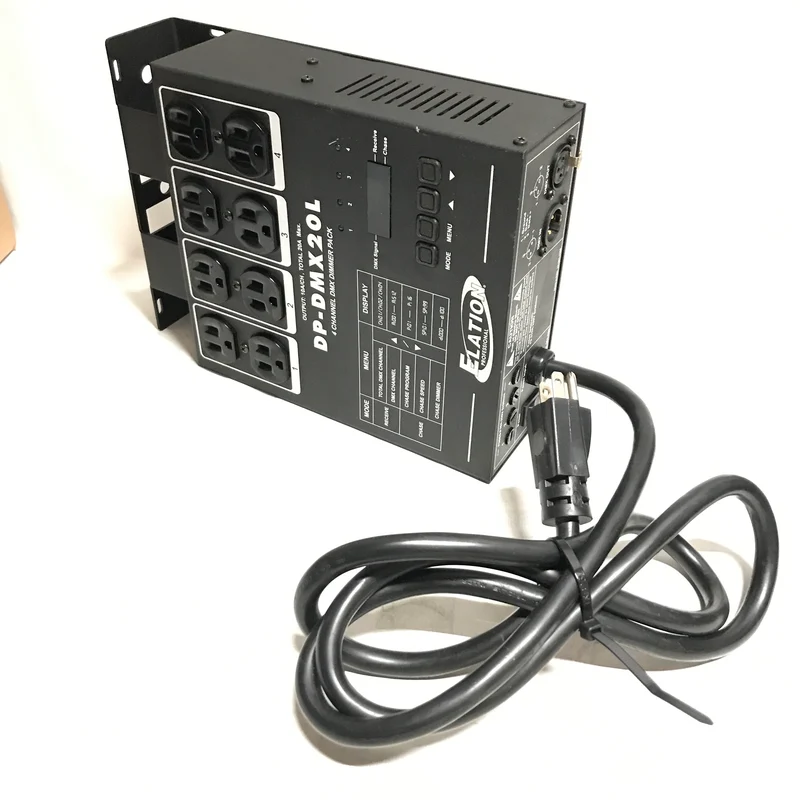

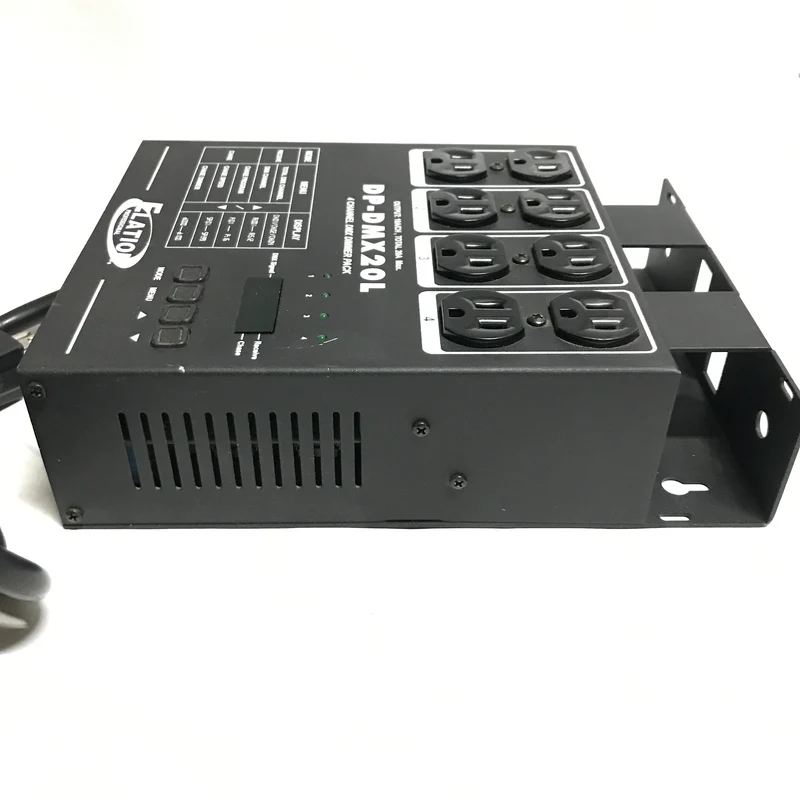

American DJ DP-DMX20L 4-Channel DMX Dimmer Pack - USED

The American DJ DP-DMX20L 4-Channel DMX Dimmer Pack features independently assignable dimming or switching channels and is easily mounted on a truss lighting rig. The DJ DP-DMX20L features 8 Edison sockets (2 per channel) and includes 16 built-in chases with speed and intensity settings as an added bonus. The DP-DMX20L is at home as a stand-alone unit connected to 8 par can or effects lights, or may be used in conjunction with a DMX controller.

• 5 amps per channel max.
• Max total amps across all channels: 15 Amps.
• 4 channel DMX dimmer pack

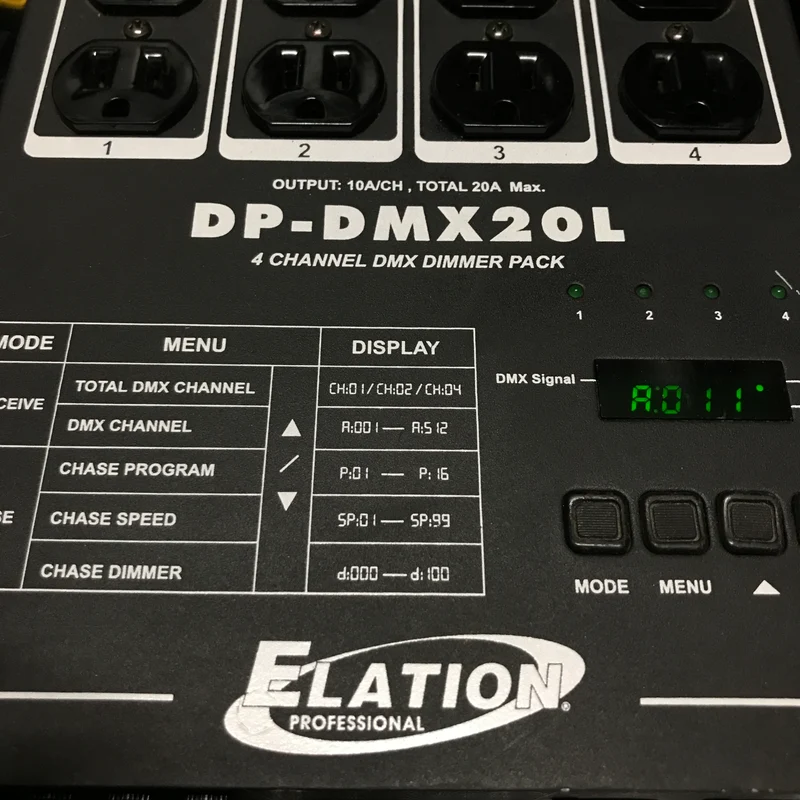

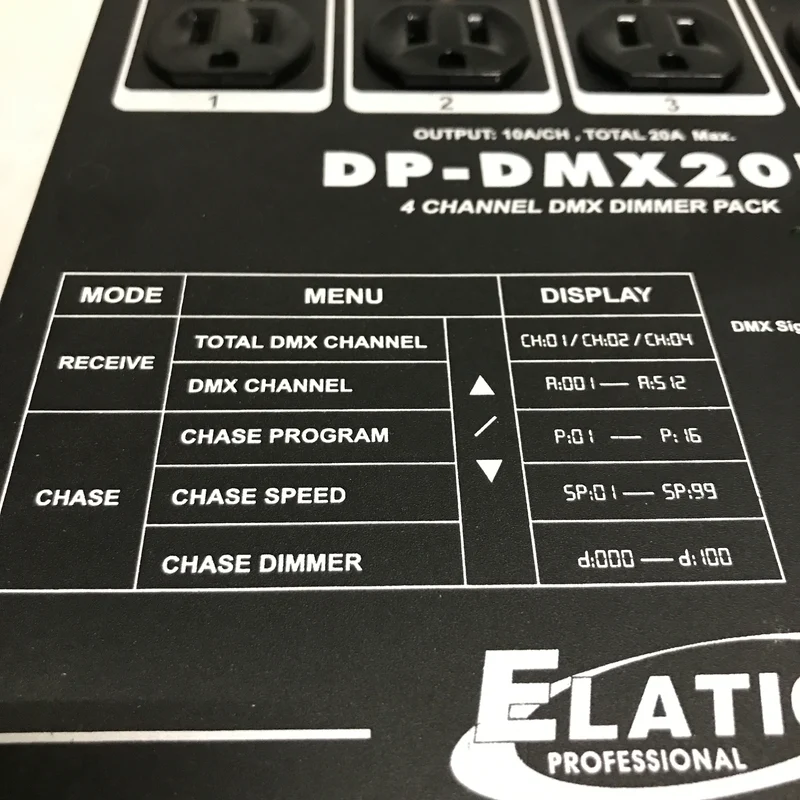

• Digital display - used to set starting DMX address channels and set all other menu options
• Selectable 1, 2, or 4 channel operation
• Adjustable master dim level
• Two three prong Edison sockets per channel
• 3-pin XLR DMX input & output
• Four LED's display channel activity
• External channel fuses for quick and easy replacement

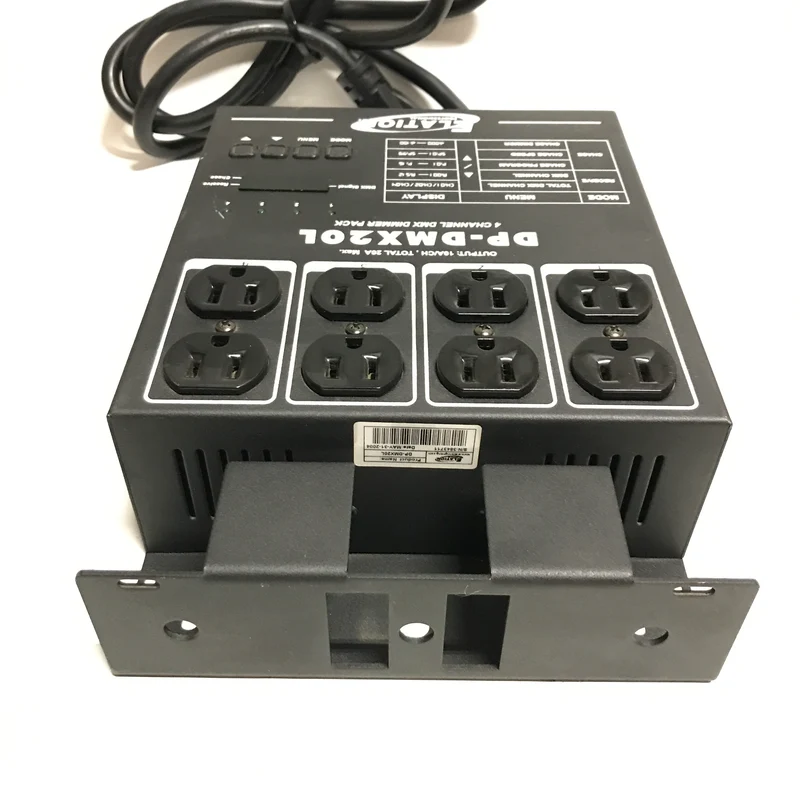

• Sleek reversible mounting panel on the rear
• Zero crossing circuitry for protection of transformer loads when switching
• 16 built in chases when in chase mode with adjustable speed setting
• Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene
• Reversible mounting brackets
• Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller

Connections

DMX	1 x 3-Pin XLR
Plug Type	NEMA 5 Unspecified

Power

AC Input Power

120 VAC, 60 Hz

General

Dimensions	8.35 x 7.4 x 2.8" / 212 x 188 x 71 mm
Weight	5.29 lb / 2.4 kg

Packaging Info

Package Weight	7.25 lb
Box Dimensions (LxWxH)	13.543 x 10.315 x 5.118"
